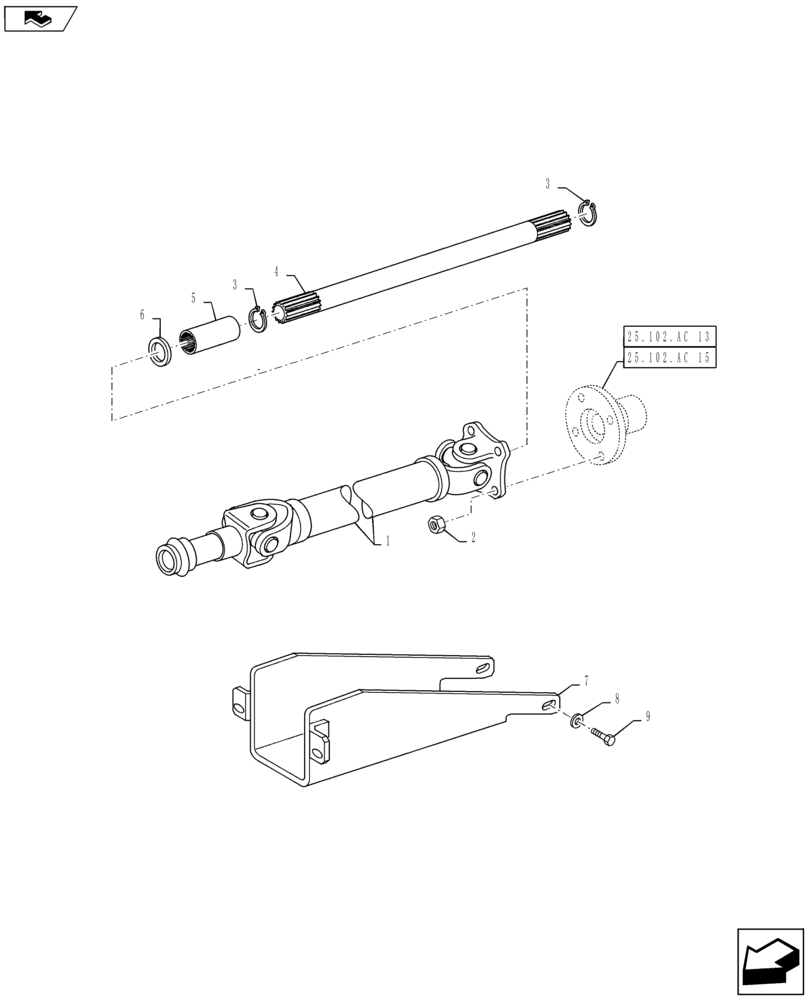

Запчасти Case IH MAXXUM 110 (23.314.AG[02]) - 4WD PROPELLER SHAFT FOR SUSPENDED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM

1

84486133

DRIVE SHAFT

Maxxum 110, 120, 130

1шт.

1

84486149

DRIVE SHAFT

Maxxum 115, 125, 140

1шт.

2

82936516

LOCK NUT,7/16"-20

4шт.

3

11067876

SNAP RING,M30, Ext

2шт.

4

47128419

DRIVE SHAFT

1шт.

5

5196462

SPLINED COUPLING,14T

1шт.

6

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

6

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

6

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

6

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

6

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

1шт.

6

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

1шт.

6

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

1шт.

6

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

1шт.

6

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

1шт.

6

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

1шт.

6

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

1шт.

6

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

1шт.

6

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

1шт.

7

5198732

SHIELD

1шт.

8

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

4шт.

9

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

4шт.
