Запчасти Case IH MAXXUM 110 (23.314.AG[01]) - STD + VAR - 330448, 336449, 743678 - 4WD PROPELLER SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

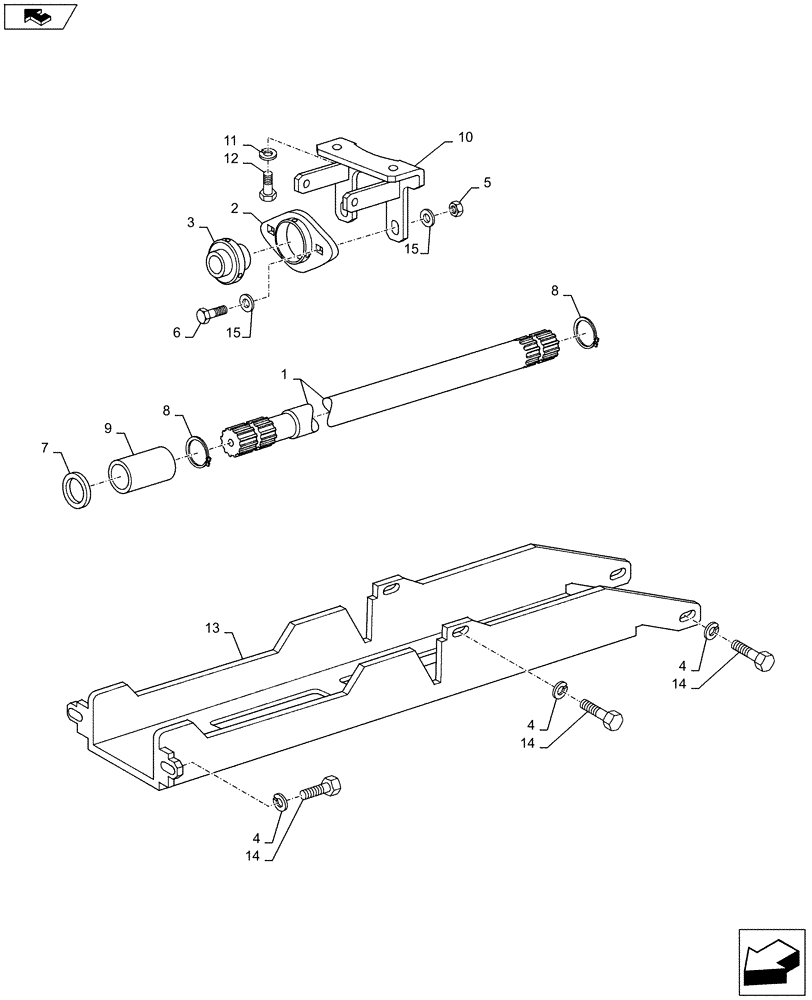

Схема запчастей Case IH MAXXUM 110 - (23.314.AG[01]) - STD + VAR - 330448, 336449, 743678 - 4WD PROPELLER SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
9
14
14
7
home
4
15
8
3
14
13
1
6
2
12
1
5
15
10
4
4
8
1

Артикул

Название

Примечание

Количество

1

87583760

PROPELLER SHAFT

Valid w/ STD Equipment and VAR 330448, 743678, Maxxum 110, 120, 130

1шт.

1

87583761

PROPELLER SHAFT

Valid w/ STD Equipment and VAR 330448, 336449, 743678, Maxxum 115, 125, 140

1шт.

2

5174572

KIT

1шт.

3

5174571

FLANGED BEARING,35mm ID

1шт.

4

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

Only w/ STD Equipment

6шт.

5

12574511

LOCK NUT,M10 x 1.25, Cl 8

2шт.

6

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

5143583

SHIM,31.7mm ID x 42mm OD x 1mm Thk

1шт.

7

5143584

SHIM,31.7mm ID x 42mm OD x 1.2mm Thk

1шт.

7

5143585

SHIM,31.7mm ID x 42mm OD x 1.5mm Thk

1шт.

7

5143586

SHIM,32mm ID x 42mm OD x 1.8mm Thk

1шт.

7

5143587

SHIM,31.7mm ID x 42mm OD x 2mm Thk

1шт.

7

5143588

SHIM,31.7mm ID x 42mm OD x 2.2mm Thk

1шт.

7

5143589

SHIM,31.7mm ID x 42mm OD x 2.5mm Thk

1шт.

7

5143590

SHIM,31.7mm ID x 42mm OD x 2.8mm Thk

1шт.

7

5143591

SHIM,31.7mm ID x 42mm OD x 3mm Thk

1шт.

7

5143592

WASHER,31.70mm ID x 42.00mm OD x 3.30mm T

1шт.

7

5143593

WASHER,31.7mm ID x 42mm OD x 3.7mm Thk

1шт.

7

5143594

WASHER,31.7mm ID x 42mm OD x 4mm Thk

1шт.

7

5143595

WASHER,31.7mm ID x 42mm OD x 4.3mm Thk

1шт.

8

11067876

SNAP RING,M30, Ext

2шт.

9

5196462

SPLINED COUPLING,14T

1шт.

10

5196472

SUPPORT

1шт.

11

11191074

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 2.6mm Thk

2шт.

12

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

13

87517146

GUARD

Only w/ STD Equipment, Maxxum 110, 120, 130

1шт.

13

87517148

GUARD

Only w/ STD Equipment, Maxxum 115, 125, 140

1шт.

14

82019896

FLANGE BOLT,Hex, M8 x 1.5 x 16mm, Piloted

Only w/ STD Equipment

6шт.

15

11198574

BELLEVILLE WASHER,Belleville, M10.5

4шт.

Выбрано товаров: 29
