Запчасти Case IH MAXXUM 110 (23.314.AB[02]) - STD + VAR - 338405, 339405 - 4WD DRIVING GEAR - SPLINED BUSHING AND RELATED PARTS (23) - FOUR WHEEL DRIVE SYSTEM

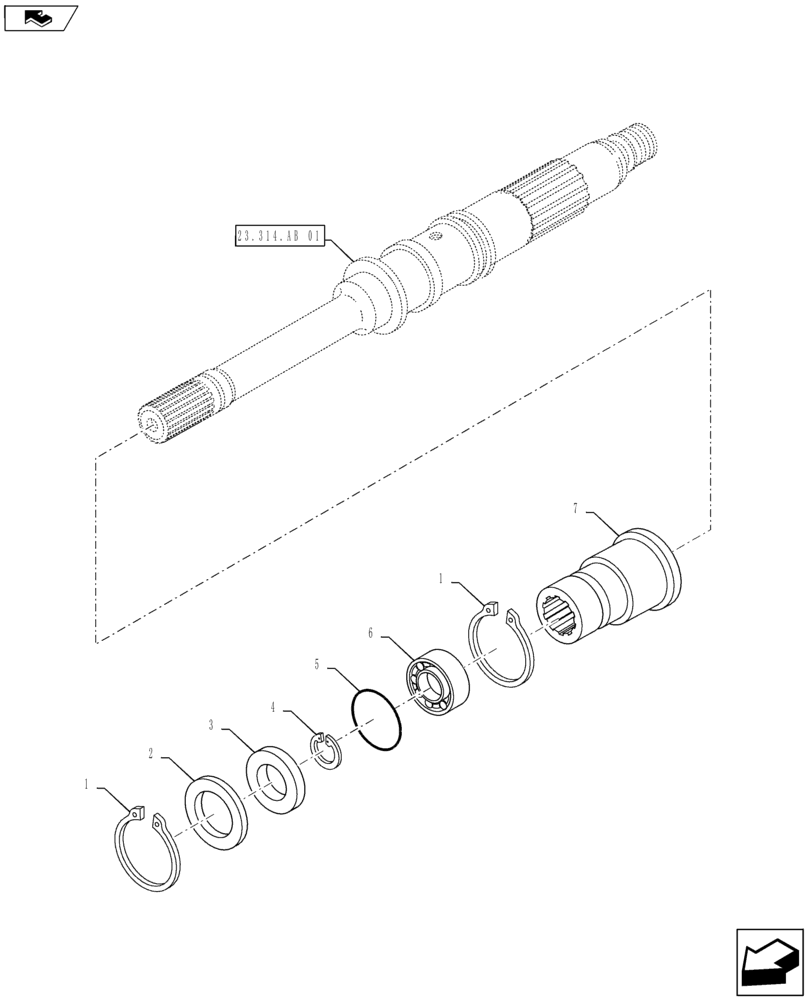

Схема запчастей Case IH MAXXUM 110 - (23.314.AB[02]) - STD + VAR - 338405, 339405 - 4WD DRIVING GEAR - SPLINED BUSHING AND RELATED PARTS (23) - FOUR WHEEL DRIVE SYSTEM
6
2
4
1
home
7
1
23.314.ab 01
5
3

Артикул

Название

Примечание

Количество

1

11061976

SNAP RING,M80, Int

2шт.

2

5194367

SEALING RING

1шт.

3

5124606

SEAL,50mm ID x 65mm OD x 8mm Thk

1шт.

4

11069376

SNAP RING,M50, Ext

1шт.

5

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

6

86516079

BALL BEARING,50mm ID x 80mm OD x 16mm W

1шт.

7

5196514

SLEEVE,14T

1шт.

Выбрано товаров: 7
