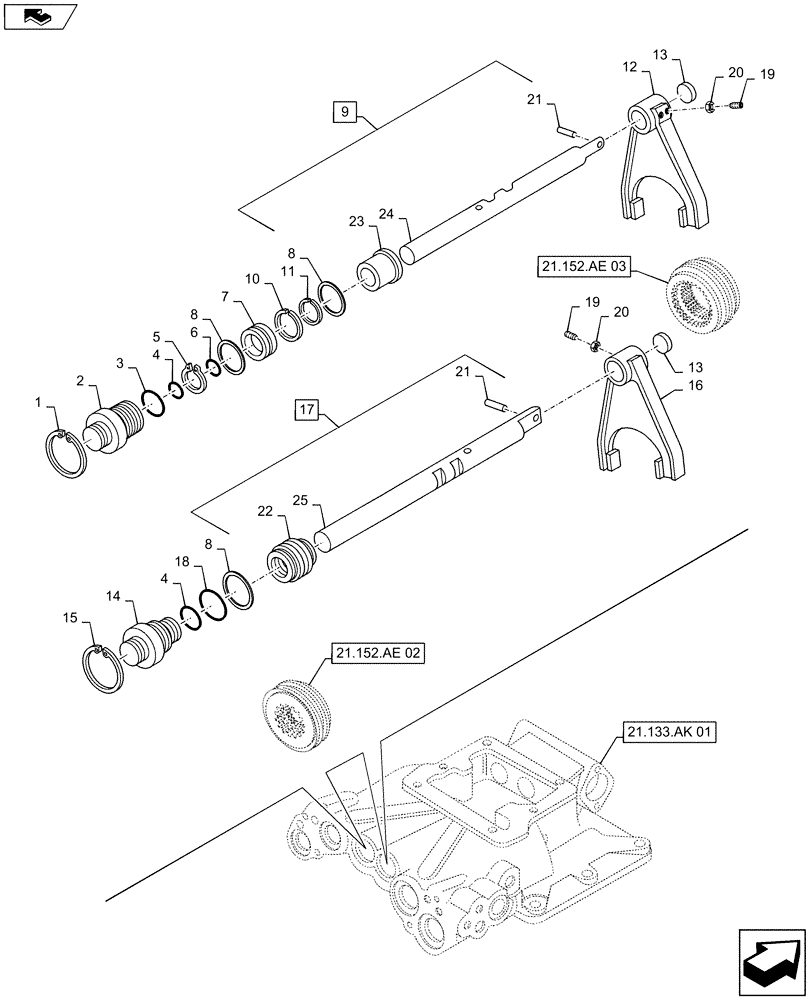

Запчасти Case IH MAXXUM 110 (21.133.AK[02]) - VAR - 330283 - TRANSMISSION 16X16 AND 17X16 (40 KM/H), SPS - REVERSER AND SPEED CONTROL (21) - TRANSMISSION

1

11060676

CIRCLIP,M55, Int

1шт.

2

5199735

PLUG

1шт.

3

14459180

O-RING,45.69mm ID x 2.62"

1шт.

4

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

4шт.

5

11067276

SNAP RING,M24, Ext

1шт.

6

14453680

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

1шт.

7

5199737

PISTON RING,41.65mm OD x 23.8mm ID x 8mm Thk

1шт.

8

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

3шт.

9

47127527

ROD

Incl 21, 23, 24

1шт.

10

13422176

CIRCLIP,M26, Int

1шт.

11

13398876

SNAP RING,M38, Int

1шт.

12

82852615

CLEVIS

Speed

1шт.

13

83417039

PLUG

2шт.

14

5199732

PLUG

1шт.

15

11060276

SNAP RING,M47, Int

1шт.

16

82007504

SHIFTER FORK

Reverser

1шт.

17

5199730

ROD

Incl 21, 22, 25

1шт.

18

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

19

82895780

SET SCREW,less Hex Socket, M10 x 20mm

4шт.

20

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

4шт.

21

82015193

PIN

2шт.

22

82015192

PISTON

1шт.

23

47127530

PISTON

1шт.

24

NSS

NOT SOLD SEPARAT

Rod, Incl in 9

1шт.

25

NSS

NOT SOLD SEPARAT

Rod, Incl 17

1шт.
