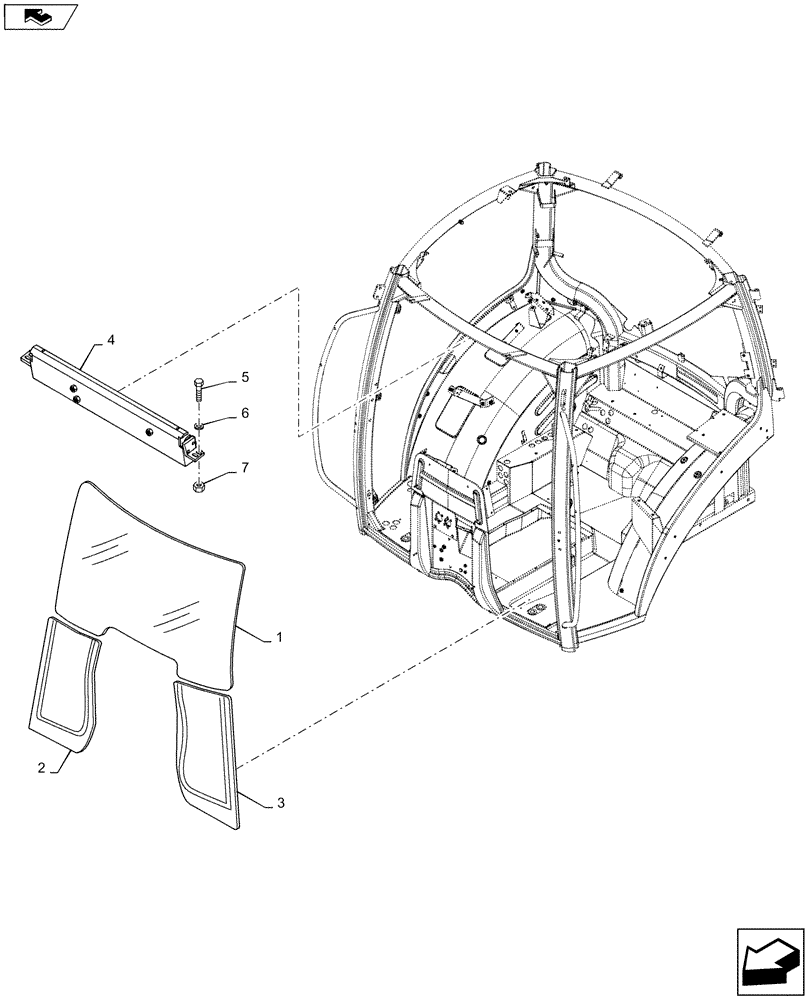

Запчасти Case IH MAXXUM 110 (90.156.AG[01]) - VAR - 331619 + STD - CAB WINDSHIELD - GLASS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87304257

WINDSHIELD

1шт.

2

87304259

CAB GLASS ASSY

RH

1шт.

3

87304261

CAB GLASS ASSY

LH

1шт.

4

84275896

SUPPORT

1шт.

5

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

6

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

4шт.
