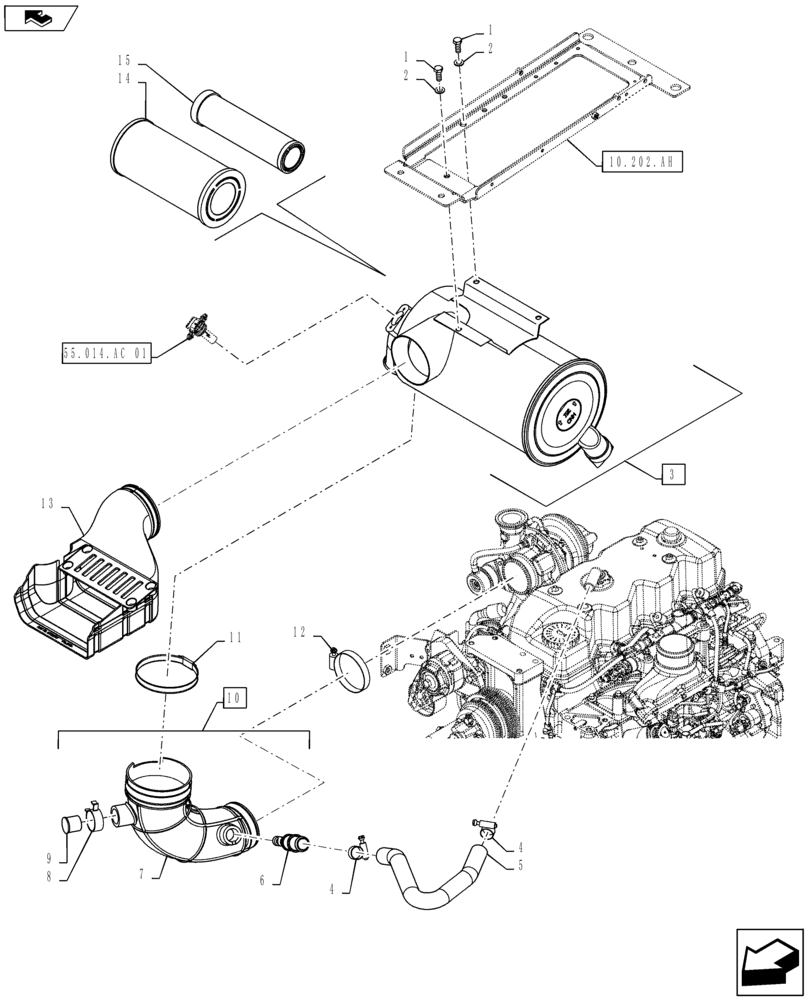

Запчасти Case IH MAXXUM 110 (10.202.AB[01]) - AIR CLEANER & INTAKE PARTS (10) - ENGINE

1

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

2

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

3

84327270

AIR CLEANER

Incl 14, 15

1шт.

4

82039344

HOSE CLAMP,20mm - 32mm

2шт.

5

84426719

HOSE

1шт.

6

87393930

TUBE,23.5 mm OD x 118 mm L

1шт.

7

NSS

NOT SOLD SEPARAT

1шт.

8

13387570

HOSE CLAMP

1шт.

9

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

10

84479093

LARGE HOSE

Incl 6 - 9

1шт.

11

82036459

CLAMP,90mm - 110mm

1шт.

12

87313786

HOSE CLAMP,Worm Gear, 70mm/90mm x 12mm W, CST ZND

1шт.

13

87522373

DUCT

1шт.

14

84493217

AIR FILTER,105.9mm ID x 186.3mm OD x 387.5mm L

Primary

1шт.

15

87682992

AIR FILTER,108.5mm OD x 380mm L

Secondary

1шт.
