Запчасти Case IH MAXXUM 110 (88.100.35[17]) - DIA KIT - 2 ELECTRONIC MID MOUNTED VALVES - DELIVERY AND DISCHARGE PIPES (88) - ACCESSORIES

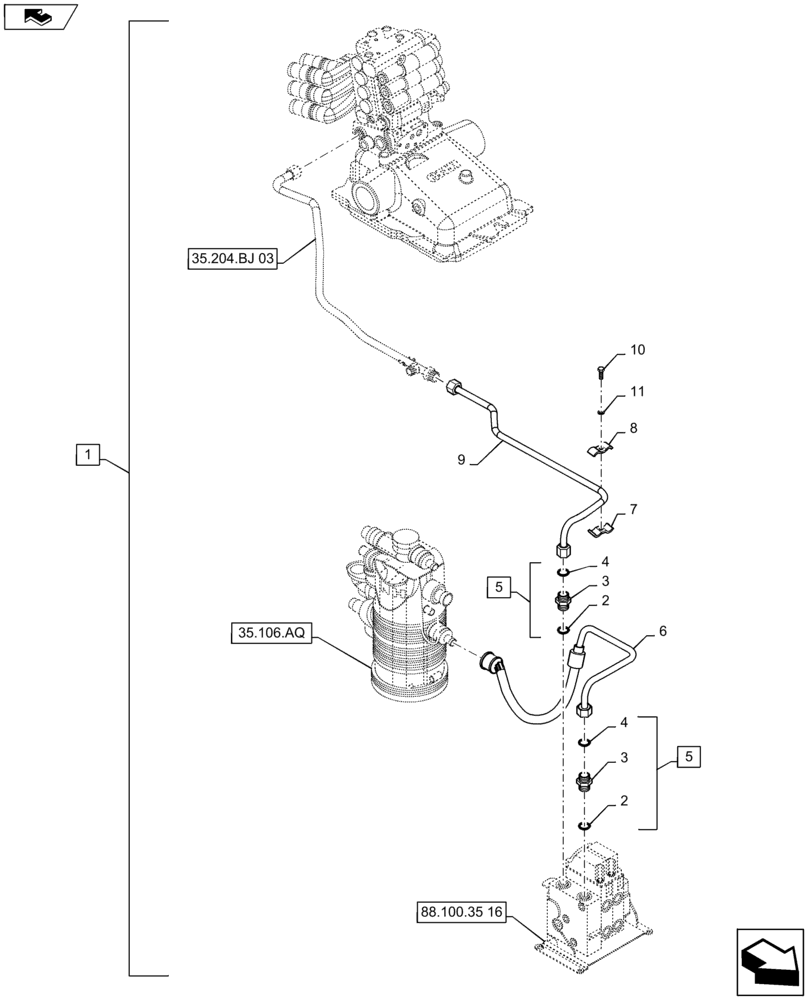

Схема запчастей Case IH MAXXUM 110 - (88.100.35[17]) - DIA KIT - 2 ELECTRONIC MID MOUNTED VALVES - DELIVERY AND DISCHARGE PIPES (88) - ACCESSORIES
7
88.100.35 16
8
2
35.106.aq
10
3
5
5
6
2
3
35.204.bj 03
9
4
home
1
4
11

Артикул

Название

Примечание

Количество

1

719763034

DIA KIT, TRACTOR

Electronic Mid Mount Valve, 2 Slice, Incl 2 - 11 and Parts on Figures 88.100.35 16 and 18

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

2

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

4

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

5

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl 2 - 4

2шт.

6

84580379

FLEXIBLE HOSE

Discharge

1шт.

7

5180016

BRACKET

1шт.

8

5180153

BRACKET

1шт.

9

84467221

HYD TUBE

Supply to Mid Mount Valve

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

11

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 12
