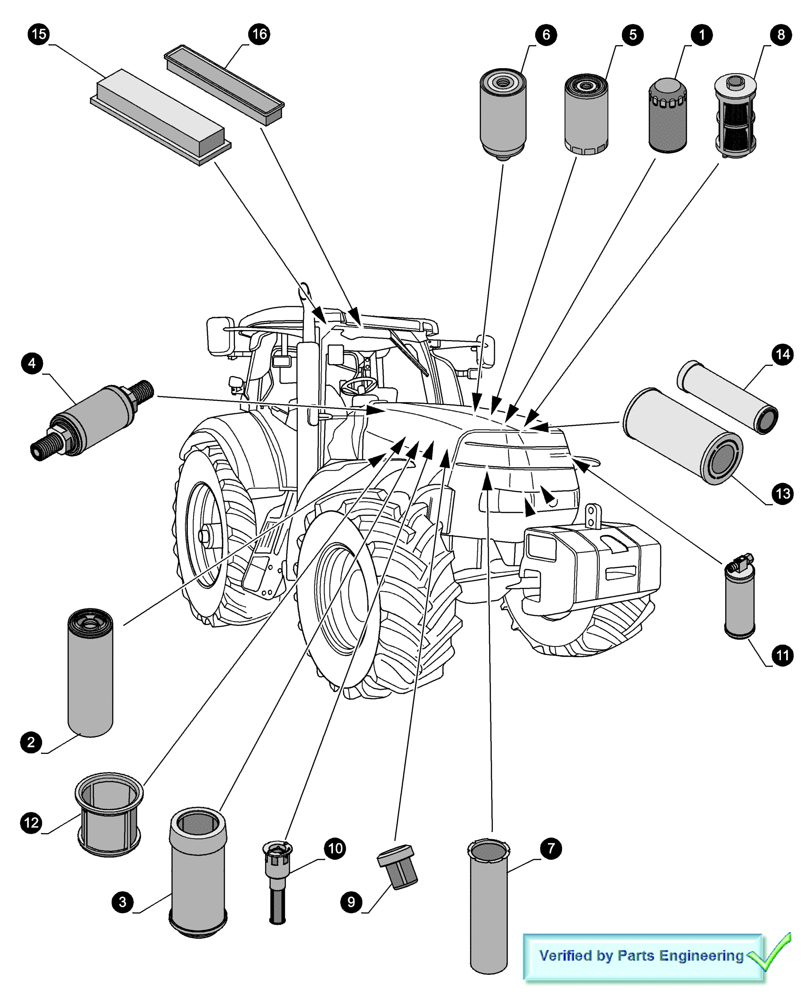

Запчасти Case IH MAXXUM 110 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

*

-

OIL FILTERS

1шт.

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

Engine Capacity (Incl. Filter) : 10 l (2.64 US gal)

1шт.

Recommended Fluid : CASE IH AKCELA UNITEK CJ-4 Engine Oil SAE 10W-40 / 15W-40 / 0W-40

1шт.

Specifications : CASE IH (MS 3521); International (API CJ-4)

1шт.

Alternative Fluid : CASE IH AKCELA No.1™ Engine Oil SAE 15W-40 / 10W-30

1шт.

Specifications : CASE IH (MS 1121); International (API CI-4 / ACEA E7)

1шт.

2

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

113 L/Min CCLS Pump

1шт.

2

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

113 L/Min CCLS Pump

1шт.

Larger Filter to be used after the first 50h on Models with CCLS Hydraulic System/Pump

1шт.

3

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Oil Filter, Suction, 113 L/Min CCLS Pump, Serial Range: -C7420

1шт.

16X16 Transmission / Rear Axle / Hydraulics Capacity : 62 l (16.4 US gal)

1шт.

24X24 Transmission / Rear Axle / Hydraulics Capacity : 65.5 l (17.3 US gal)

1шт.

4WD Front Axle Differential Capacity : 9 l (2.38 US gal)

1шт.

4WD Front Axle Hubs Capacity (Class 3 - w/o Brakes) : 1.25 l (0.33 US gal)

1шт.

4WD Front Axle Hubs Capacity (Class 3 - w/ Brakes) : 3 l (0.79 US gal)

1шт.

Front PTO Capacity : 0.5 l (0.13 US gal)

1шт.

Recommended Fluid : CASE IH AKCELA NEXPLORE™

1шт.

Specifications : CASE IH (MAT 3525); International (API GL4 / SAE 10W-30 / ISO VG32/46)

1шт.

3

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Filter & Seal, Oil Filter, Suction, Start Serial: D7420

1шт.

16X16 Transmission / Rear Axle / Hydraulics Capacity : 62 l (16.4 US gal)

1шт.

24X24 Transmission / Rear Axle / Hydraulics Capacity : 65.5 l (17.3 US gal)

1шт.

4WD Front Axle Differential Capacity : 9 l (2.38 US gal)

1шт.

4WD Front Axle Hubs Capacity (Class 3 - w/o Brakes) : 1.25 l (0.33 US gal)

1шт.

4WD Front Axle Hubs Capacity (Class 3 - w/ Brakes) : 3 l (0.79 US gal)

1шт.

Front PTO Capacity : 0.5 l (0.13 US gal)

1шт.

Recommended Fluid : CASE IH AKCELA NEXPLORE™

1шт.

Specifications : CASE IH (MAT 3525); International (API GL4 / SAE 10W-30 / ISO VG32/46)

1шт.

4

84169702

FILTER

Hydrostatic Steering

1шт.

*

-

FUEL FILTERS

1шт.

5

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

on Engine

1шт.

6

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

on Engine, w/ Water Separator

1шт.

7

84481152

FILTER SCREEN

Fuel Tank

1шт.

Fuel Tank Capacity : 175 l (46.2 US Gal)

1шт.

8

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Biodiesel

1шт.

*

-

DEF/ADBLUE™ FILTERS

1шт.

9

84153651

FILTER SCREEN

DEF/Adblue™ Lines

1шт.

10

84363730

FILTER STRAINER

DEF/Adblue™ Tank

1шт.

DEF/Adblue™ Tank Capacity : 37 l (9.8 US gal)

1шт.

*

-

AIR CONDITIONING FILTERS

1шт.

11

87343822

RECEIVER-DRYER

A/C System

1шт.

A/C Compressor Oil : Low Viscosity Oil SP10

1шт.

Specifications : International (PAG-E13 ISO100 Viscosity)

1шт.

*

-

BRAKE OIL FILTERS

1шт.

12

87491693

FILTER

Brake Oil, Screen

1шт.

Recommended Fluid : CASE IH AKCELA LHM

1шт.

Specifications : International (ISO 7308)

1шт.

*

-

AIR CLEANER FILTERS

1шт.

13

84493217

AIR FILTER,105.9mm ID x 186.3mm OD x 387.5mm L

Primary Element (STD 9")

1шт.

13

87704244

AIR FILTER,105.9mm ID x 186.3mm OD x 387.5mm L

Primary Element w/ Pre-Cleaner

1шт.

14

87682992

AIR FILTER,108.5mm OD x 380mm L

Safety Element

1шт.

*

-

CAB FILTERS

1шт.

15

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

16

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

w/ Low Roof

2шт.

16

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

w/ High Roof

2шт.

*

-

COOLING SYSTEM

1шт.

Cooling System Capacity : 21 l (5.5 US gal)

1шт.

Recommended Fluid : CASE IH AKCELA PREMIUM Anti-freeze mixed with 50% Water

1шт.

Specifications : CASE IH (MS 1710); International (Ethylene Glycol)

1шт.
