Запчасти Case IH MAXXUM 110 (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

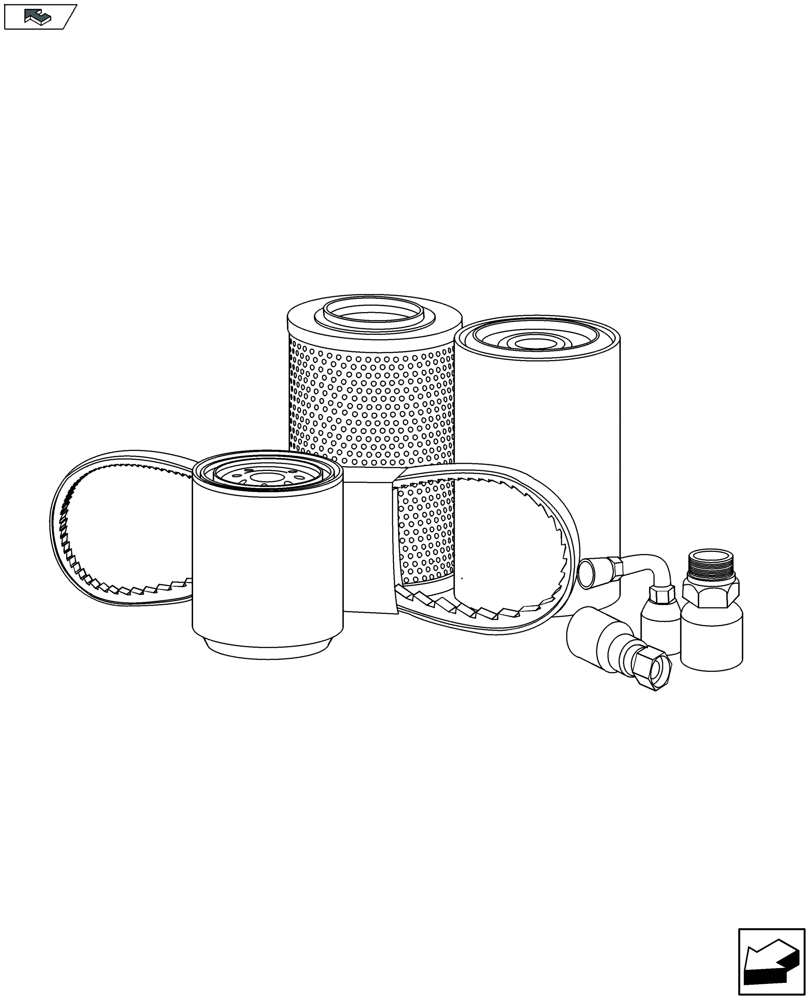

Схема запчастей Case IH MAXXUM 110 - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

4899178

V-BELT,28.48 mm W x 1550.00 mm L, 8 Ribs

Engine

1шт.

2

84344776

V-BELT,14mm W x 940mm L, 4 Ribs

Air Conditioning

1шт.

3

84536660

V-BELT,14mm W x 1065mm L, 4 Ribs

Air Brake

1шт.

4

4894139

PLUG,Hex Soc, M22 x 1.5

Engine Oil Pan

1шт.

5

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Engine Oil Pan Drain Plug

1шт.

6

4895202

FILLER CAP

Engine Oil Filler Cap

1шт.

7

4895296

SEALING RING,30mm ID x 48mm OD x 3mm Thk

Engine Oil Filler Cap Gasket

1шт.

8

4897242

SENSOR

Engine Speed Rate

1шт.

9

2859674

SENSOR,Oil Pressure

Engine Oil Prerssure & Temperature

1шт.

10

4897224

SENSOR

Thermosensor

1шт.

11

82017873

SENSOR

Pressure & Temperature

1шт.

12

82029779

SENDER UNIT

Engine Oil Pressure

1шт.

13

87745841

PRESSURE SWITCH

Engine Oil Pressure

1шт.

14

2853552

SENSOR

Engine Oil Pump Pressure

1шт.

15

84043184

SENSOR

Clogging Indicator

1шт.

16

87482355

SENSOR

Humidity Temp. Air Cleaner

1шт.

17

84414466

SENSOR

Assy - Denox

1шт.

18

47367178

SENSOR

Exhaust System Temperature

1шт.

19

87369250

SWITCH

Black - Trans. STS

1шт.

20

87369251

SWITCH ASSY

Grey - Trans Status

1шт.

21

87564694

PROBE

Trasmission Oil Temperature

1шт.

22

87564684

SWITCH ASSY

Trasmission Oil Pressure

1шт.

23

82028133

SENSOR,3/8"-18

Transmission Temperature

1шт.

24

87605247

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

25

87395493

PRESSURE SWITCH

Pressure Trans. Oil

1шт.

26

82025340

RESTRICTION SWITCH

1шт.

27

82033971

FUSE,100A, Maxi, Violet

2шт.

28

87283179

BULB,H4, 12V, 60/55W

Headlamp

2шт.

29

139119A1

BULB,#886, 12V, 50W

Headlamp

2шт.

30

10857790

BULB,R10W, 12V, 5W

2шт.

31

44995162

BULB,T-3 1/4, 12.8V, 50W

Worklamp

2шт.

32

9703399

BULB,H3, 12V, 55W

2шт.

33

14148090

BULB,PY21W, 12V, 21W

Tail/Turn Signal l/cab Tractors

2шт.

34

14144690

BULB,P21/5W, 12V, 21/5W

Tail/Stop Signal w/cab Tractors

2шт.

35

82013124

RELAY,12V, 30A

Power (30 Amp Sealed)

2шт.

36

529068

BULB,#1156, 12V, 21W

2шт.

37

9847313

BULB,#894, 12V, 37.5W

Lamp 894-12V (37W-Halogen)

2шт.

38

82012872

RELAY,70A

Ignition Load Relay

2шт.

39

87561528

SWITCH ASSY

1шт.

40

82030144

IGNITION KEY

1шт.

41

87304226

RELAY,12V, Combined, Black

Combined Wiper Module

1шт.

42

82023238

RELAY,12V, 20A

1шт.

43

82003697

RELAY,12V, 30A

Remote Control

1шт.

44

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

45

87577636

FLASHER UNIT

Except NA

1шт.

46

84414345

FLASHER UNIT

NA only

1шт.

47

82023624

FUSE,250A, Mega

2шт.

48

84174070

FUSE,30A, Orange

2шт.

49

84183837

FUSE,80A, Maxil, Natural

Maxifuses

2шт.

50

5190333

FUSE,40A, Maxi, Orange

Maxifuses

2шт.

51

5173264

FUSE,30A, Maxi, Green

Maxifuses

2шт.

52

10402190

FUSE,30A, Mini

Minifuses

2шт.

53

10401290

FUSE,25 amp Mini

Minifuses

2шт.

54

10401190

FUSE,20A, Mini, Yellow

Minifuses

2шт.

55

87524877

FUSE,15A, Mini, Blue

Minifuses

2шт.

56

87522597

FUSE,10A, Mini, Red

Minifuses

2шт.

57

84253578

FUSE,20A

Maxival Fuse (Isobus Harness)

2шт.

58

87304226

RELAY,12V, Combined, Black

1шт.

59

82030798

RELAY,12V, 70A

1шт.

60

87494632

PRESSURE SWITCH,M12 x 1.5

1шт.

61

87384755

SWITCH ASSY

Trailer Brake Pressure

1шт.

62

82014329

SWITCH

1шт.

63

87564762

SENSOR

After Date 25/09/03

1шт.

64

47132449

SWITCH

Brake Contactor

1шт.

65

82005257

SWITCH ASSY

Park Brake Contactor

1шт.

66

87392809

RELAY,High Current, 12V, 190A

Battery Disconnect Switch

1шт.

Выбрано товаров: 66
