Запчасти Case IH MAXXUM 110 (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

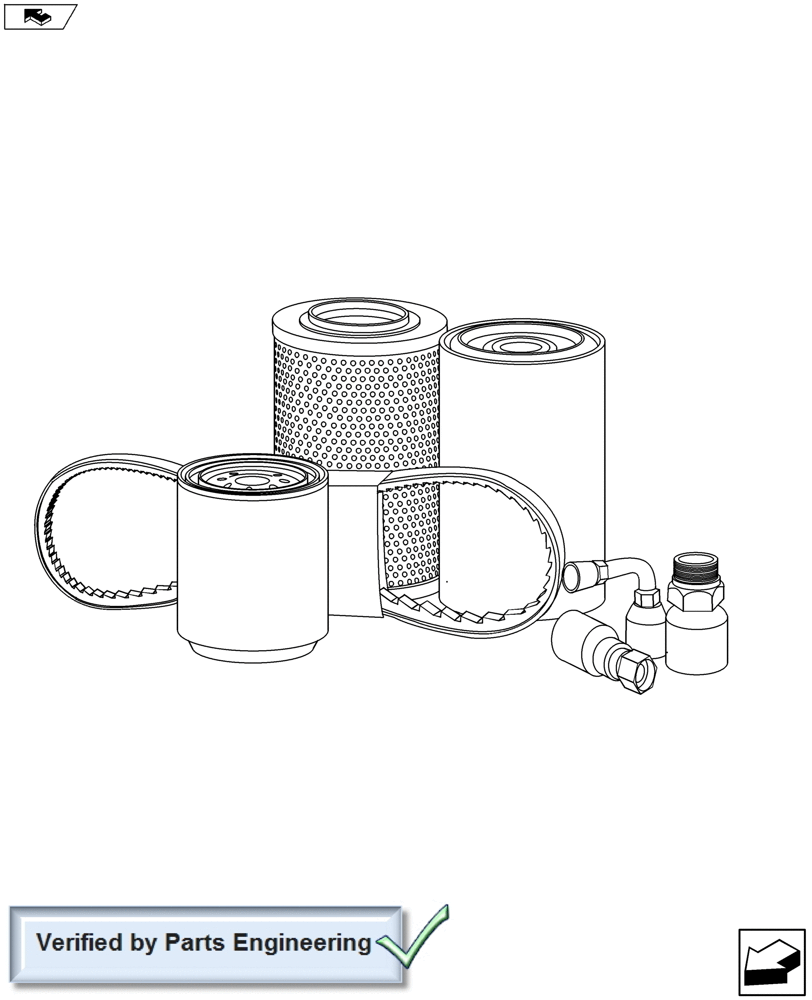

Схема запчастей Case IH MAXXUM 110 - (05.100.01) - INITIAL STOCKING LIST (LIST A) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

1шт.

2

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

on Engine

1шт.

3

84278636

FUEL FILTER,96.2mm OD x 183mm L, M16x1.5 - 6H, W/ WIF Sensor (M14)

on Engine, w/ Water Separator

1шт.

4

84493217

AIR FILTER,105.9mm ID x 186.3mm OD x 387.5mm L

Air Cleaner, Primary Element (STD 9")

1шт.

5

87704244

AIR FILTER,105.9mm ID x 186.3mm OD x 387.5mm L

Primary Element, w/ Pre-Cleaner

1шт.

6

87682992

AIR FILTER,108.5mm OD x 380mm L

Safety Element

1шт.

7

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Biodiesel

1шт.

8

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Oil Filter, Suction, Serial Range: -C7420

1шт.

9

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

1шт.

9

84226263

HYDRAULIC OIL FILTER,116.8mm OD x 295.4mm L, 1" 3/8-12UNF

1шт.

Larger Filter to be used after the first 50h on Models with CCLS Hydraulic System/Pump

1шт.

10

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Recirculation

1шт.

11

87726695

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

w/ Low Roof

2шт.

12

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

w/High Roof

2шт.

13

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Filter & Seal, Oil Filter, Suction, Start Serial: D7420

1шт.

Выбрано товаров: 15
