Запчасти Case IH MAXXUM 110 (31.146.AL) - VAR - 333648, 334648, 335648, 332647, 333647, 743700 - INTEGRATED FRONT HPL WITH PTO - GUARDS (31) - IMPLEMENT POWER TAKE OFF

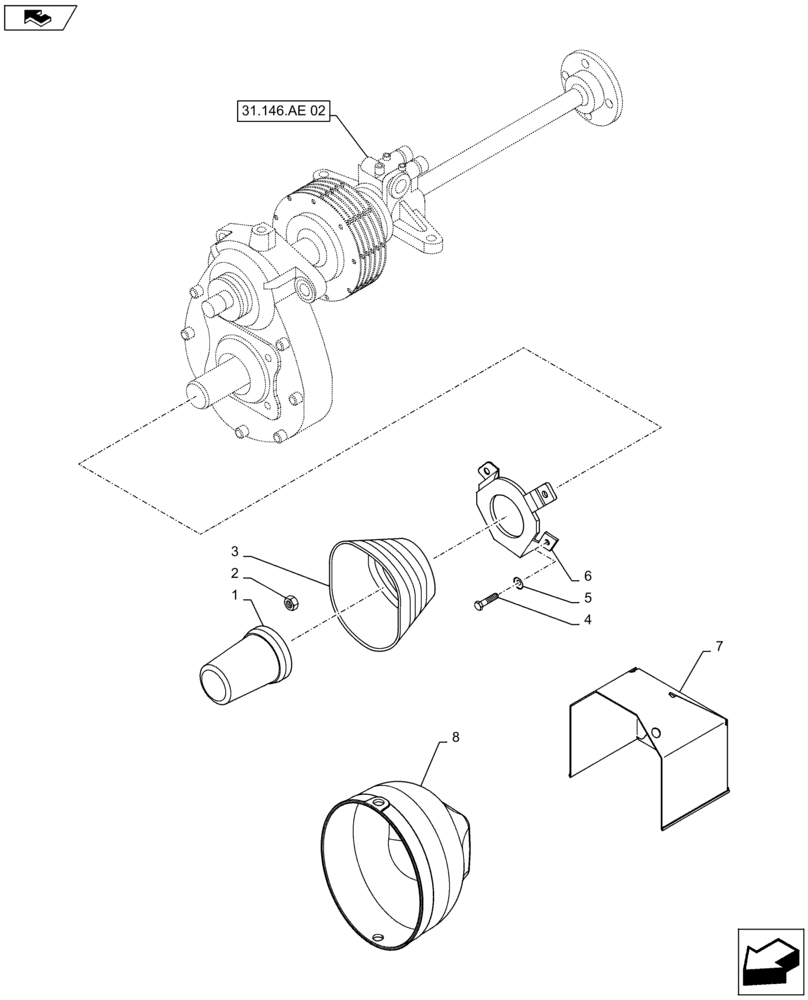

Схема запчастей Case IH MAXXUM 110 - (31.146.AL) - VAR - 333648, 334648, 335648, 332647, 333647, 743700 - INTEGRATED FRONT HPL WITH PTO - GUARDS (31) - IMPLEMENT POWER TAKE OFF
home
4
6
5
3
8
31.146.ae 02
2
1
7

Артикул

Название

Примечание

Количество

1

5165104

COVER

1шт.

2

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

3

47056296

GUARD

, Years: -08-JUN-12

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

47057580

COVER

1шт.

7

47383767

COVER

, Start Year: 09-JUN-12, Serial Range: -ZEBE50179

1шт.

8

84556976

PROTECTING COVER

, Start Serial: ZEBE50180

1шт.

Выбрано товаров: 8
