Запчасти Case IH MAXXUM 110 (25.102.AC[08]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - DIFFERENTIAL BREAKDOWN (25) - FRONT AXLE SYSTEM

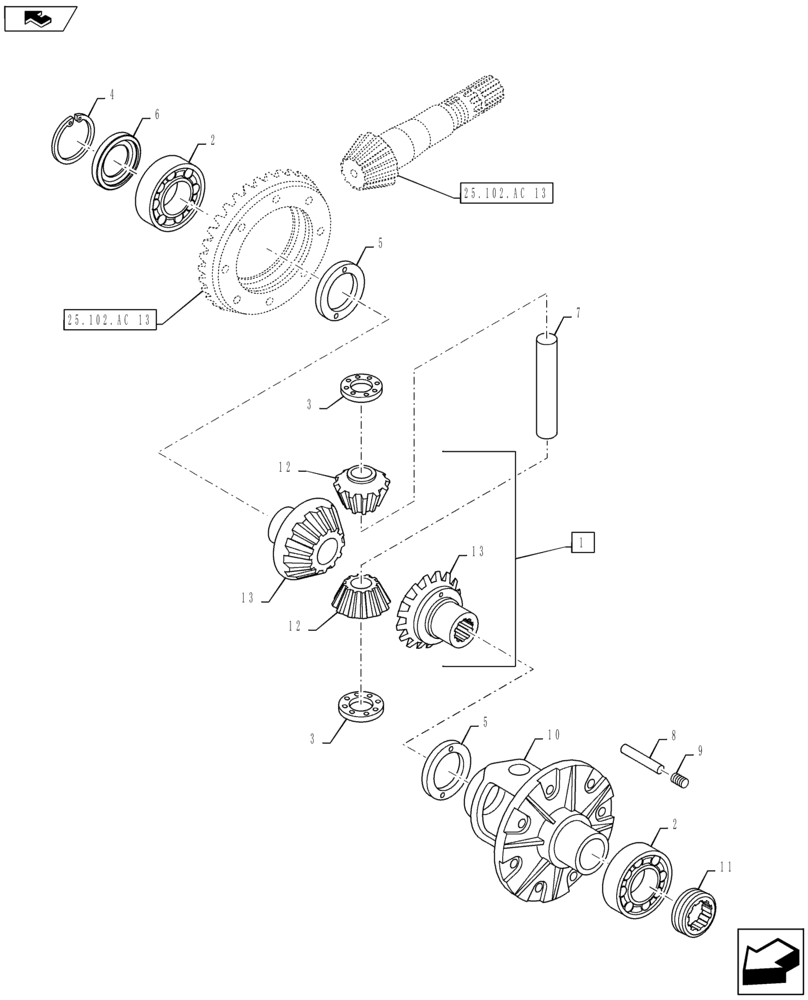

Схема запчастей Case IH MAXXUM 110 - (25.102.AC[08]) - VAR - 330414, 330427 - CL.3 SUSPENDED FRONT AXLE - DIFFERENTIAL BREAKDOWN (25) - FRONT AXLE SYSTEM
2
12
1
8
13
13
11
12
10
9
6
25.102.ac 13
5
3
4
5
home
25.102.ac 13
2
3
7

Артикул

Название

Примечание

Количество

1

47134168

DIFFERENTIAL GEAR

Incl 12, 13

1шт.

2

24903450

TAPERED BEARING,60mm ID x 95mm OD x 23mm W

2шт.

3

4987975

THRUST WASHER,24mm ID x 48mm OD

2шт.

4

11062676

SNAP RING,M95, Int

1шт.

5

5148940

THRUST WASHER,44mm ID x 66mm OD x 1.4mm Thk

1шт.

5

5148936

THRUST WASHER,44mm ID x 66mm OD x 1.6mm Thk

1шт.

5

5148939

THRUST WASHER,44mm ID x 66mm OD x 1.5mm Thk

1шт.

5

5148938

THRUST WASHER,44mm ID x 66mm OD x 1.7mm Thk

1шт.

5

5148937

THRUST WASHER,44mm ID x 66mm OD x 1.8mm Thk

1шт.

5

5167387

THRUST WASHER,44mm ID x 66mm OD x 1.9mm Thk

1шт.

5

5167388

THRUST WASHER,44mm ID x 66mm OD x 2mm Thk

1шт.

5

5181356

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.1mm T

1шт.

5

5181357

THRUST WASHER,44.00mm ID x 66.00mm OD x 2.2mm T

1шт.

6

5141460

SHIM,83mm ID x 94.9mm OD x 0.9mm Thk

1шт.

6

5141461

SHIM,83mm ID x 94.9mm OD x 1mm Thk

1шт.

6

5141462

SHIM,83mm ID x 94.9mm OD x 1.1mm Thk

1шт.

6

5141463

SHIM,83mm ID x 94.9mm OD x 1.2mm Thk

1шт.

6

5141464

SHIM,83mm ID x 94.9mm OD x 1.3mm Thk

1шт.

6

5141465

SHIM,83mm ID x 94.9mm OD x 1.4mm Thk

1шт.

6

5141466

SHIM,83mm ID x 94.9mm OD x 1.5mm Thk

1шт.

6

5141467

SHIM,83.00mm ID x 94.50mm OD x 1.60mm T

1шт.

6

5141468

SHIM,83mm ID x 94.9mm OD x 1.7mm Thk

1шт.

6

5141469

SHIM,83mm ID x 94.9mm OD x 1.8mm Thk

1шт.

6

5141470

SHIM,83.00mm ID x 94.50mm OD x 1.90mm T

1шт.

6

5141471

SHIM,83.00mm ID x 94.50mm OD x 2.00mm T

1шт.

7

5148935

PIN,24mm OD x 144mm L

1шт.

8

5173242

ROLL PIN,6.5mm OD x 61mm L

1шт.

9

13807870

SET SCREW,Hex Soc, M8 x 14mm, Flat Pt

1шт.

10

5174842

HOUSING

1шт.

11

4996750

RING NUT,M100 x 2

1шт.

12

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

2шт.

13

NSS

NOT SOLD SEPARAT

Pinion, Incl in 1

2шт.

Выбрано товаров: 32
