Запчасти Case IH MAXXUM 110 (25.100.AV[03]) - VAR - 743699, 336831, 743700, 333648 - INTEGRATED FRONT HPL - SUPPORT FOR 4WD STANDARD FRONT AXLE (25) - FRONT AXLE SYSTEM

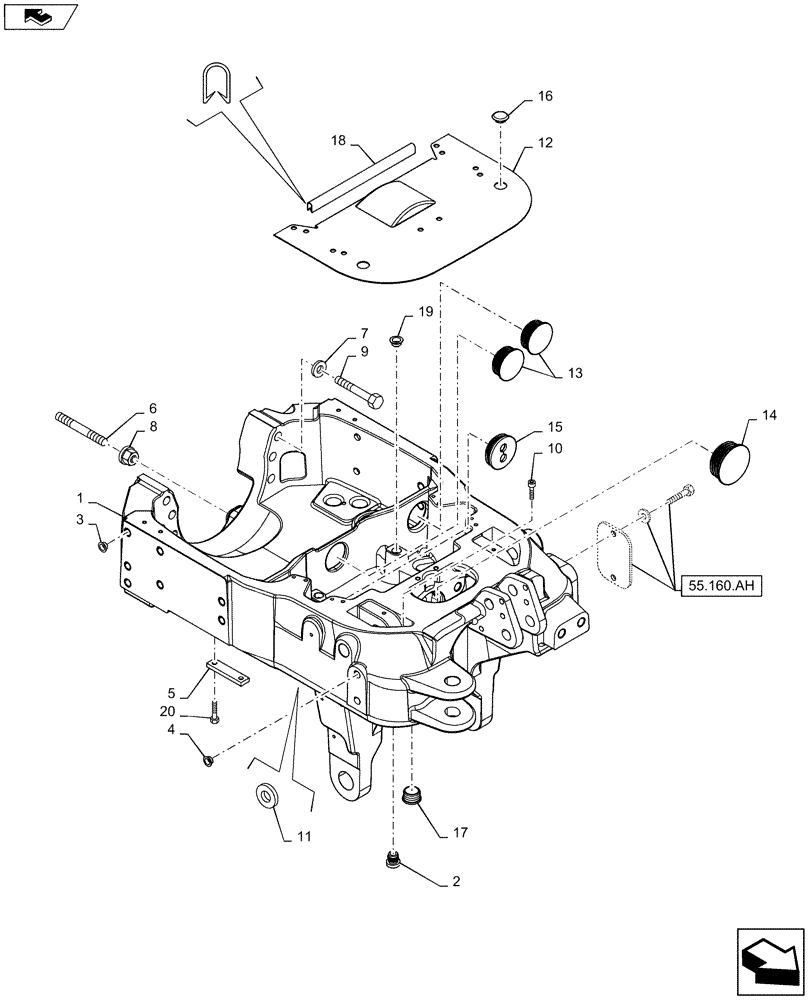

Схема запчастей Case IH MAXXUM 110 - (25.100.AV[03]) - VAR - 743699, 336831, 743700, 333648 - INTEGRATED FRONT HPL - SUPPORT FOR 4WD STANDARD FRONT AXLE (25) - FRONT AXLE SYSTEM
15
19
4
5
10
3
12
17
2
1
8
home
9
11
16
18
14
7
55.160.ah
13
6
20

Артикул

Название

Примечание

Количество

1

87661567

SUPPORT

1шт.

2

83908579

PLUG,M7.62

2шт.

3

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

4

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

5

87361847

SPACER,111mm L x 26mm W x 10mm Thk

2шт.

6

87301866

STUD,M20 x 1.5 x 170mm, Cl 10.9

2шт.

7

82028022

WASHER,M8 x 1.25 ID x 40mm OD x 9mm Thk, CRLC or HRLC Steel

Qty 4 for Maxxum 110, 120, 130, Qty 6 for Maxxum 115, 125, 140

1шт.

8

82023393

LOCK NUT

2шт.

9

82029234

BOLT,Hex, M20 x 1.5 x 125mm, Cl 12.9

Qty 4 for Maxxum 110, 120, 130, Qty 6 for Maxxum 115, 125, 140

1шт.

10

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

11

82026240

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

11

82026241

SHIM,20.2mm ID x 50mm OD x 4.8mm Thk

1шт.

11

82026242

SHIM,20.2mm ID x 50mm OD x 5.1mm Thk

1шт.

11

82026243

SHIM,20.2mm ID x 50mm OD x 5.4mm Thk

1шт.

11

82026244

SHIM,20.2mm ID x 50mm OD x 5.7mm Thk

1шт.

11

82026245

SHIM,20.2mm ID x 50mm OD x 6mm Thk

1шт.

11

82026246

SHIM,20.2mm ID x 50mm OD x 6.3mm Thk

1шт.

11

82026247

SHIM,20.2mm ID x 50mm OD x 6.6mm Thk

1шт.

11

82026248

SHIM,20.2mm ID x 50mm OD x 6.9mm Thk

1шт.

11

82026249

SHIM,20.2mm ID x 50mm OD x 4.5mm Thk

1шт.

11

82026250

SHIM,20mm ID x 50mm OD x 7.5mm Thk

1шт.

11

82026251

SHIM,20.2mm ID x 50mm OD x 7.8mm Thk

1шт.

12

87565348

COVER

1шт.

13

82023395

PLUG,60mm ID

2шт.

14

82027992

PLUG,80.00mm, 90.00mm OD, 32.00mm D

1шт.

15

82023398

PLUG

1шт.

16

47057762

SLEEVE,25mm ID x 36mm OD x 10mm L

2шт.

17

82019459

PLUG,Polypropylene Air cleaner hose

1шт.

18

83964601

MOLDING,164mm L

2шт.

19

87523187

PLUG,M12 x 1.5

2шт.

20

82015433

HEX SOC SCREW,FLAT, M10 x 1.5 x 25mm, Cl 10.9

4шт.

Выбрано товаров: 31
