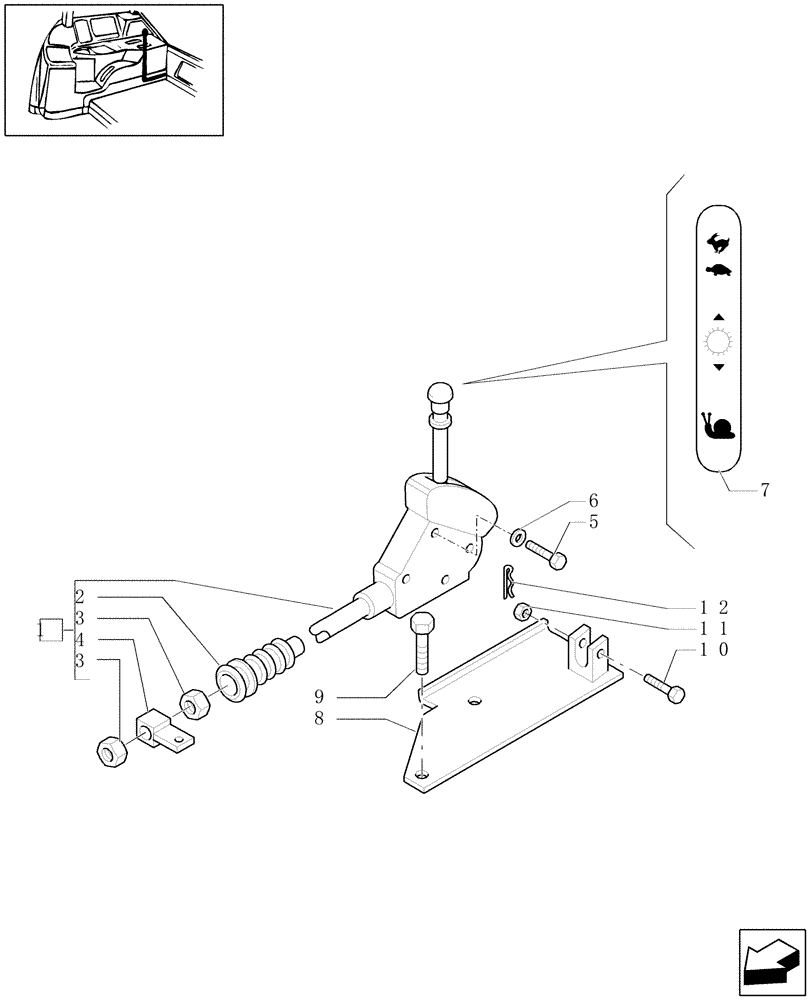

Запчасти Case IH MAXXUM 100 (1.96.5) - CREEPER FOR TRANSMISSION 12X12 - CONTROL (VAR.330330) (10) - OPERATORS PLATFORM/CAB

1

82026629

CONTROL

1шт.

2

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

1шт.

3

82012528

NUT,Hex, M6 x 1

2шт.

4

82012527

PIN

1шт.

5

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

6

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

3шт.

7

87556499

DECAL

1шт.

8

82029182

SUPPORT

1шт.

9

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

10

10903221

SCREW,Hex, M6 x 40mm, Cl 8.8

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

10733601

COTTER PIN,M3.2 x 22

1шт.
