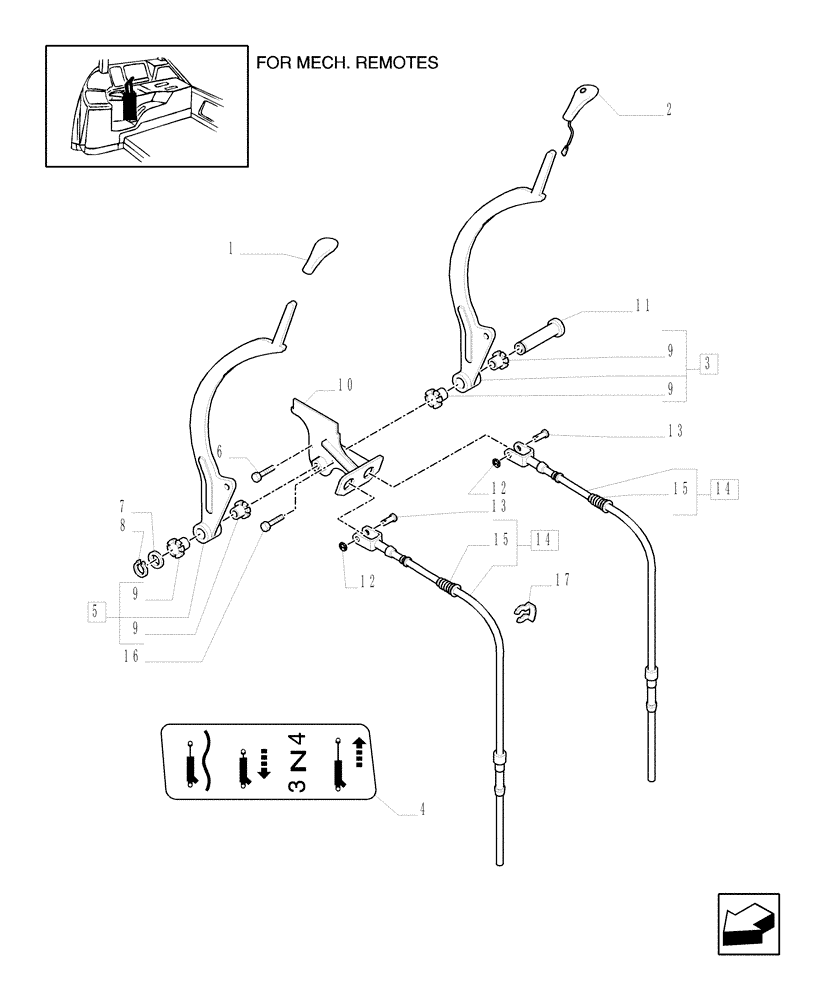

Запчасти Case IH MAXXUM 100 (1.96.2/06[01]) - 4 REM. F/CCLS PUMP F/EDC W/HYD. ADJ. LINKAGE AND REL. PARTS - CONTROL VALVE CONTROLS (VAR.334845) (10) - OPERATORS PLATFORM/CAB

1

82037912

KNOB

1шт.

2

87317960

SWITCH ASSY

W/SWITCH

1шт.

3

82036839

LEVER

1шт.

4

82036266

DECAL

2шт.

5

82038176

LEVER

1шт.

6

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

2шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

81819651

SPRING WASHER,13mm ID x 19mm OD

6 x 12.5

1шт.

8

11088171

SNAP RING,M11

1шт.

9

82035633

BUSHING

4шт.

10

87308465

HOUSING

1шт.

11

82035628

HEADED PIN,11.98mm OD x 95mm L

1шт.

12

11087771

LOCKING RING

2шт.

13

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

2шт.

14

87525209

CABLE,1828mm L

Remote Control, Serial Range: -C5875

2шт.

14

87678198

CABLE,1828mm L

Remote Control, Start Serial: D5875

2шт.

15

82006917

GROMMET,7.8mm ID x 34mm OD, Rubber, Black

2шт.

16

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

17

82007837

LOCKING RING

2шт.
