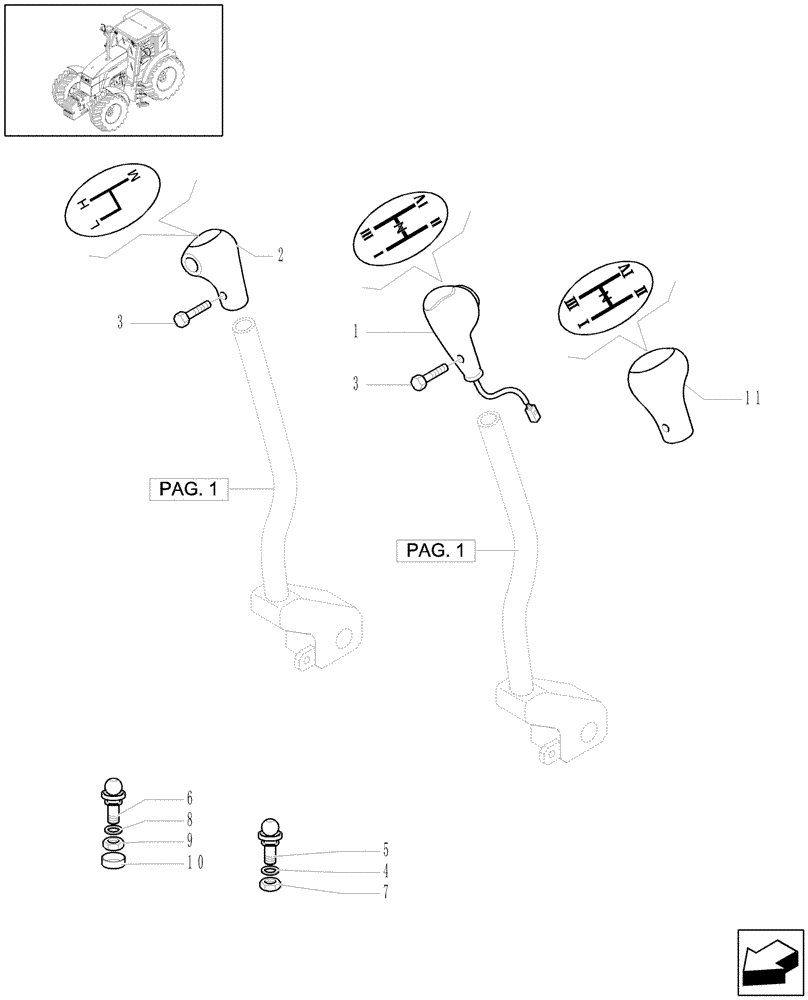

Запчасти Case IH MAXXUM 100 (1.96.0[02]) - GEARSHIFT CONTROLS FOR TRANSMISSION 12X12 OR 24X24 (10) - OPERATORS PLATFORM/CAB

1

82022589

KNOB

Speed and HI-LO Selection, 4 Position

1шт.

with 24x24 Transmission

1шт.

2

82032422

KNOB

Range Selection, H - M - L

1шт.

3

82880737

SCREW,Phillips Drive, Oval HD, M5 x 10mm, Cl 4.8

2шт.

4

10569374

LOCK WASHER,M8

2шт.

5

82036162

BALL STUD,M8 x 1.25

M8

2шт.

6

82036163

BALL STUD,M10 x 1.5

M10

2шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

9

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

10

87311939

NUT

Protection Cap, M14

2шт.

11

82023648

KNOB

Speed Selection

1шт.

with 12x12 Transmission

1шт.
