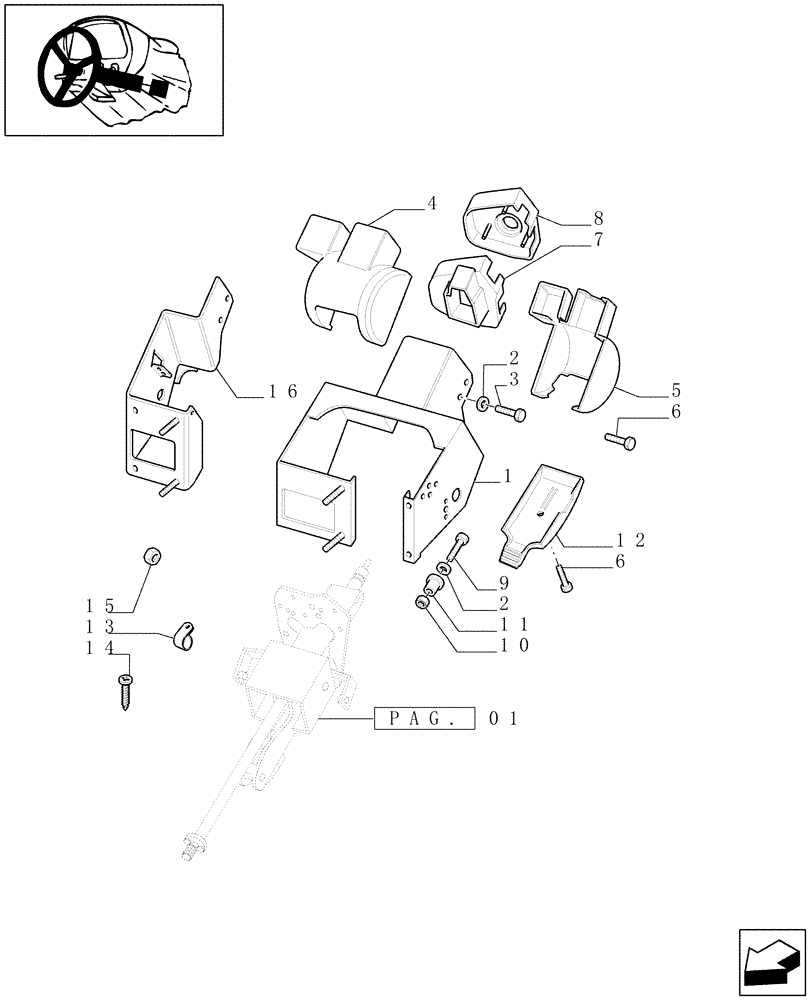

Запчасти Case IH MAXXUM 100 (1.95.5/03[02]) - FAST STEERING - COVERING AND SUPPORT (VAR.330631-332631-333631-336631) (10) - OPERATORS PLATFORM/CAB

1

87333850

SUPPORT

, Serial Range: -C6260

1шт.

2

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

6шт.

3

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

4шт.

4

82036446

COVER

1шт.

5

82036756

COVER

1шт.

6

83959742

SCREW,Phillips Drive, Oval HD, M6 x 10mm, Cl 4.8

7шт.

7

87568062

COVER

1шт.

8

87569648

COVER

1шт.

9

11107221

BOLT,Hex, M10 x 50mm, Cl 8.8

4шт.

10

11701721

NUT,M10, Cl 10

2шт.

11

82027074

SPACER,20mm ID x 30mm OD x 25mm L

6шт.

12

82036958

HANDLE

Column Adjust

1шт.

13

82036750

CLAMP,10mm ID, 4mm Bolt Hole, P Type

1шт.

14

15959301

SELF-TAP SCREW,M5 x 3 x 25.00mm, R40, ZND

4шт.

15

16104121

NUT,M8 x 1.25, Cl 10

1шт.

16

87579189

SUPPORT

, Start Serial: D6260

1шт.
