Запчасти Case IH MAXXUM 100 (1.91.4/12[01B]) - ENGINE BLOCK AND TRANSMISSION HEATER, 240 V - D7339 (VAR.330206) (10) - OPERATORS PLATFORM/CAB

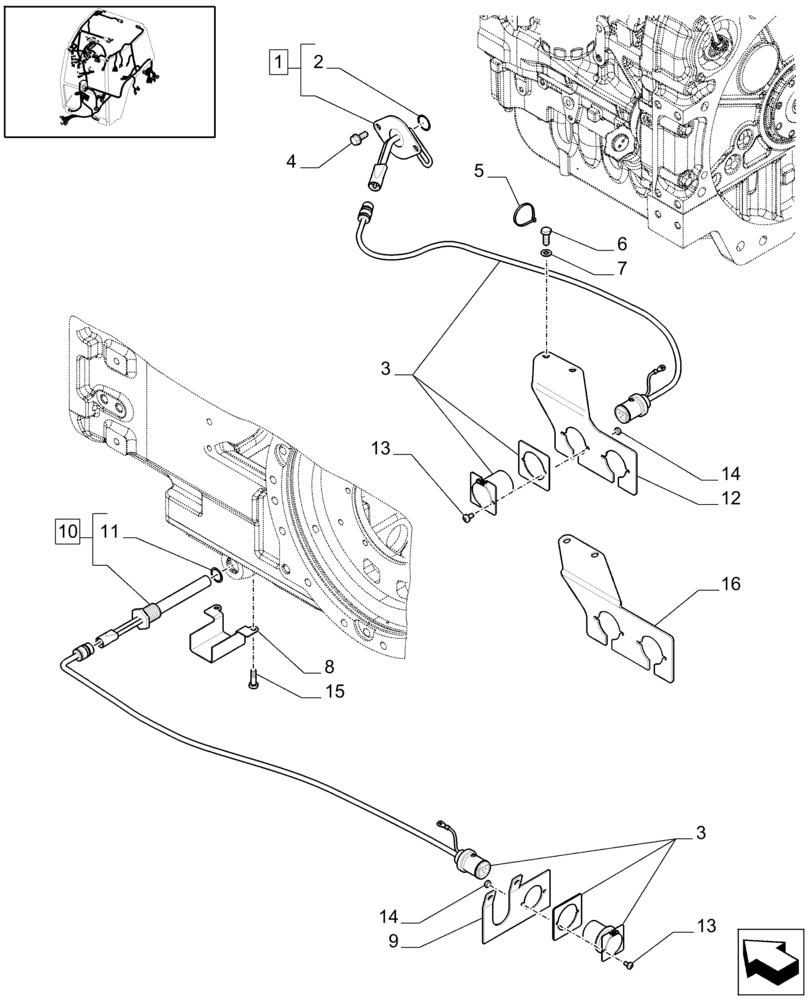

Схема запчастей Case IH MAXXUM 100 - (1.91.4/12[01B]) - ENGINE BLOCK AND TRANSMISSION HEATER, 240 V - D7339 (VAR.330206) (10) - OPERATORS PLATFORM/CAB
14
6
12
3
1
11
14
2
5
3
8
15
13
4
16
7
10
13
9

Артикул

Название

Примечание

Количество

1

87756078

HEATER,240V

ASSY

1шт.

2

4891258

O-RING,1.984" ID x 2.262" OD x 0.139"

1шт.

3

84397509

ELECTRIC CABLE

2шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

5

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

2шт.

6

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

7

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

8

87616064

GUARD

1шт.

9

87315478

BRACKET

1шт.

10

82030789

HEATER,240V

ASSY

1шт.

11

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

12

84305836

SUPPORT

1шт.

13

13276414

SCREW,Pozidriv Pan Hd, M6 x 20mm, Cl 5.8, Full Thd

, Serial Range: -C7339

4шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

14420271

HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 12.9, Full Thd

1шт.

16

47370843

BRACKET

, Start Serial: D7339

1шт.

Выбрано товаров: 16
