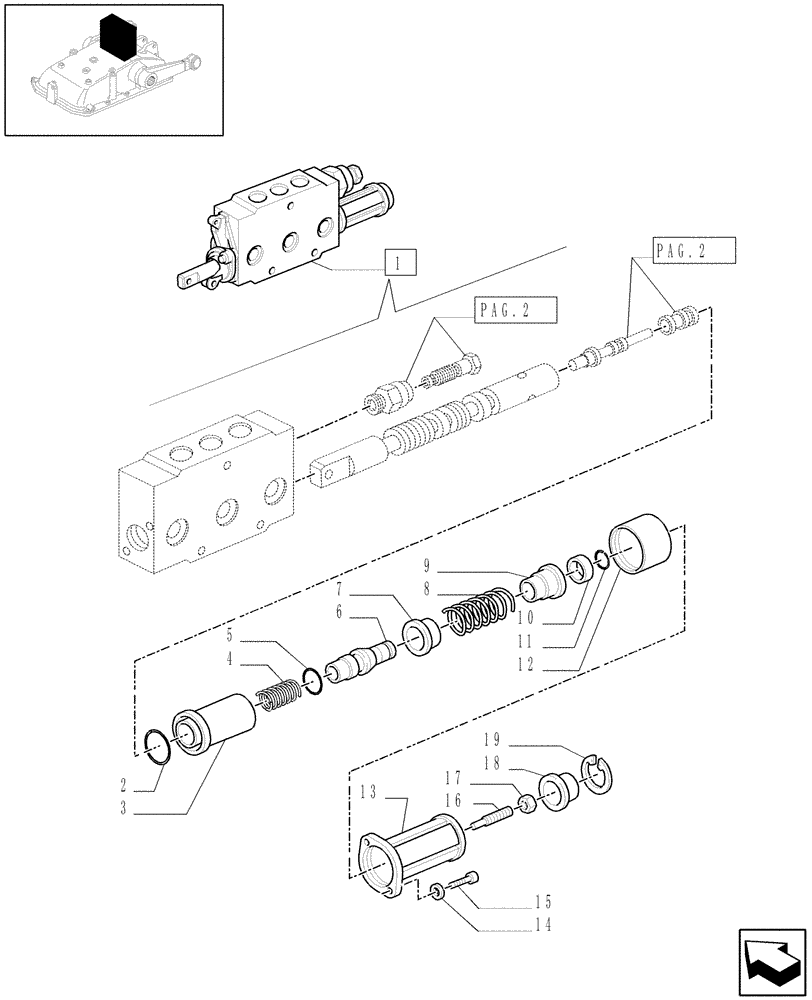

Запчасти Case IH MAXXUM 100 (1.82.7/ C[03]) - DOUBLE - ACTING EXTERNAL CONTROL VALVE WITH FLOAT AND AUTOMATIC CUTOUT - BREAKDOWN - C5500 (07) - HYDRAULIC SYSTEM

1

47123211

HYD VALVE SECTION

W/Float and Kick-Out

1шт.

2

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

3

5179066

BUSHING,16mm ID x 27mm OD x 47mm L

1шт.

4

5163369

SPRING,Compression, 9mm OD x 38mm L

1шт.

5

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

6

5163365

PLUG,M14 x 1.5

1шт.

7

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

1шт.

8

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

9

5143575

CUP,13mm ID x 21.5mm OD x 18mm Thk

1шт.

10

5143576

SPACER,13mm ID x 18.5mm OD x 5mm L

1шт.

11

5143577

SNAP RING,11.2mm D x 1.6mm Thk

1шт.

12

5143578

SPACER,28mm ID x 32mm OD x 29.5mm L

1шт.

13

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

15

5143621

HEX SOC SCREW,6.35mm OD x 48.5mm L

2шт.

16

5163362

ADJUSTMENT SCREW,Hdls Hex Skt, M3.5 x 10mm

30MM

1шт.

17

15896421

NUT,M5, Cl 10

1шт.

18

5143567

COVER

1шт.

19

13421276

SNAP RING,M28, Int

1шт.
