Запчасти Case IH MAXXUM 100 (1.82.7/21) - LOADER READY WITH MECHANICAL JOYSTICK AND 2 ELEMENTS MID MOUNT VALVES - CONTROL VALVE AND PIPES (VAR.330820-332820-330821-331821 / 743745; 334820 / 743746) (07) - HYDRAULIC SYSTEM

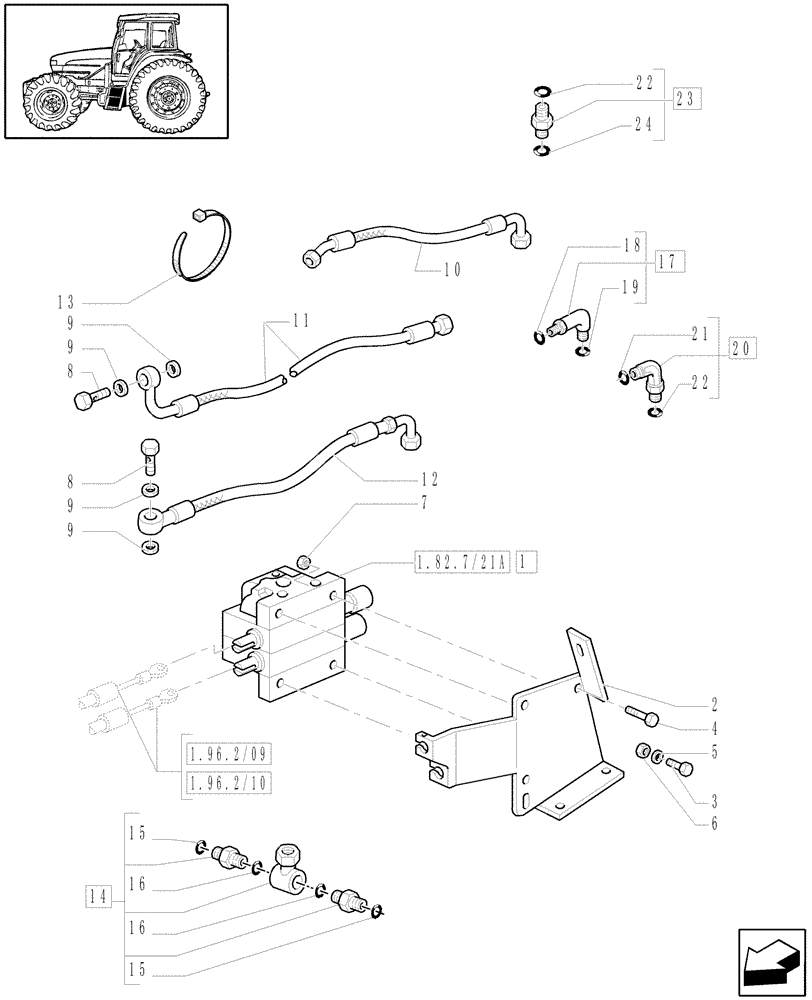

Схема запчастей Case IH MAXXUM 100 - (1.82.7/21) - LOADER READY WITH MECHANICAL JOYSTICK AND 2 ELEMENTS MID MOUNT VALVES - CONTROL VALVE AND PIPES (VAR.330820-332820-330821-331821 / 743745; 334820 / 743746) (07) - HYDRAULIC SYSTEM
15
18
2
7
21
20
13
19
3
17
1.82.7/21a
22
1
9
8
9
9
9
8
14
5
16
12
16
4
11
24
6
23
22
1.96.2/09
1.96.2/10
10
15

Артикул

Название

Примечание

Количество

1

87324660

CONTROL VALVE

ASSY

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

M10x35

2шт.

4

14420574

HEX SOC SCREW,M10 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

M12x1.25x40

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

87325050

HYDRAULIC HOSE

Load Sense, 2050MM

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

Return, 680MM

1шт.

12

87736275

HYDRAULIC HOSE,15.88mm ID x 2000mm L, SAE 100R2

Feed, 2000MM

1шт.

13

81844383

CABLE TIE

CABLE STRAP

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

15

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

17

82034042

ELBOW

1-3/16"-12 UN-2A/M27X2, Incl. 18, 19

1шт.

18

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

19

14438185

O-RING,24mm ID x 3mm

1шт.

20

5194728

90 ELBOW

M22x1.5

1шт.

21

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

22

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

23

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1шт.

24

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Выбрано товаров: 26
