Запчасти Case IH MAXXUM 100 (1.40. 0/04) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. LOCK - LINK (04) - FRONT AXLE & STEERING

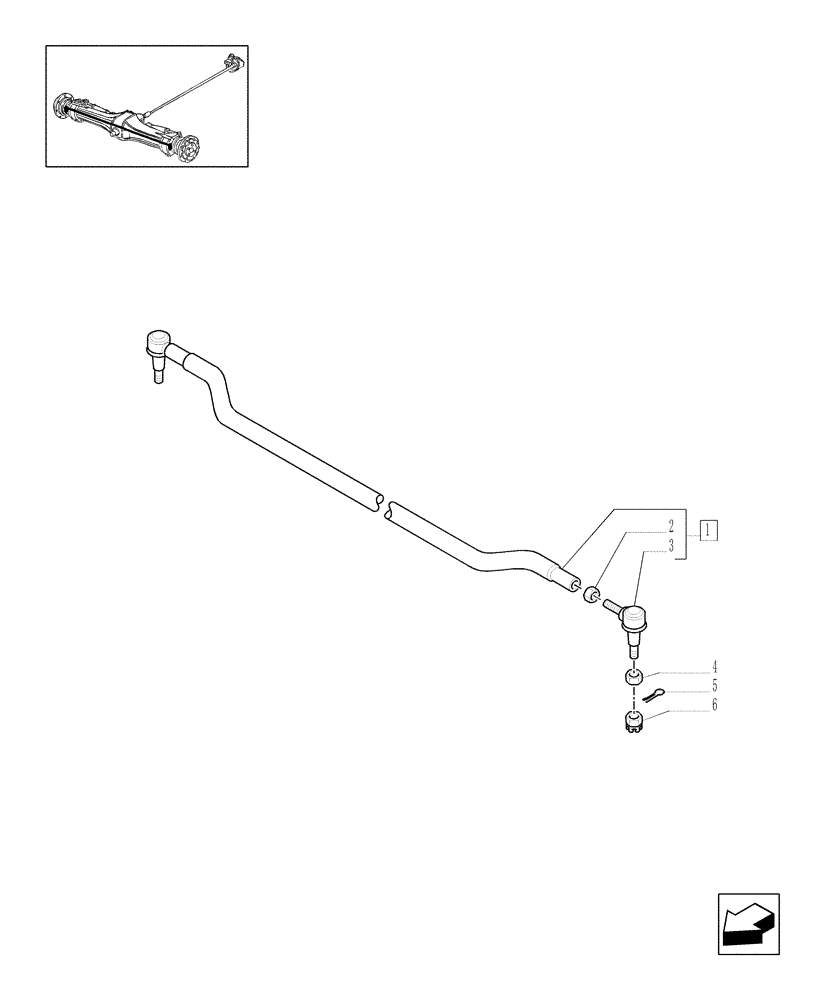

Схема запчастей Case IH MAXXUM 100 - (1.40. 0/04) - 4WD (CL.3) FRONT AXLE WITH LIMITED SLIP DIFF. LOCK - LINK (04) - FRONT AXLE & STEERING
2
1
5
4
6
3

Артикул

Название

Примечание

Количество

1

5197798

TRACK ROD ASSY,M24 x 1.5mm ID x 1597mm L

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87542553

BALL JOINT

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

5

10733801

COTTER PIN,M4 x 36

2шт.

6

10724611

NUT

M18x1.5

2шт.

Выбрано товаров: 6
