Запчасти Case IH MAXXUM 100 (1.29.7/13[01A]) - 113 L/MIN CCLS PUMP FOR SPS - GEARBOX LUBRICATION PIPING - D6562 - C7070 - (VAR.330835-331836-332836-333836-335836 / 743744) (03) - TRANSMISSION

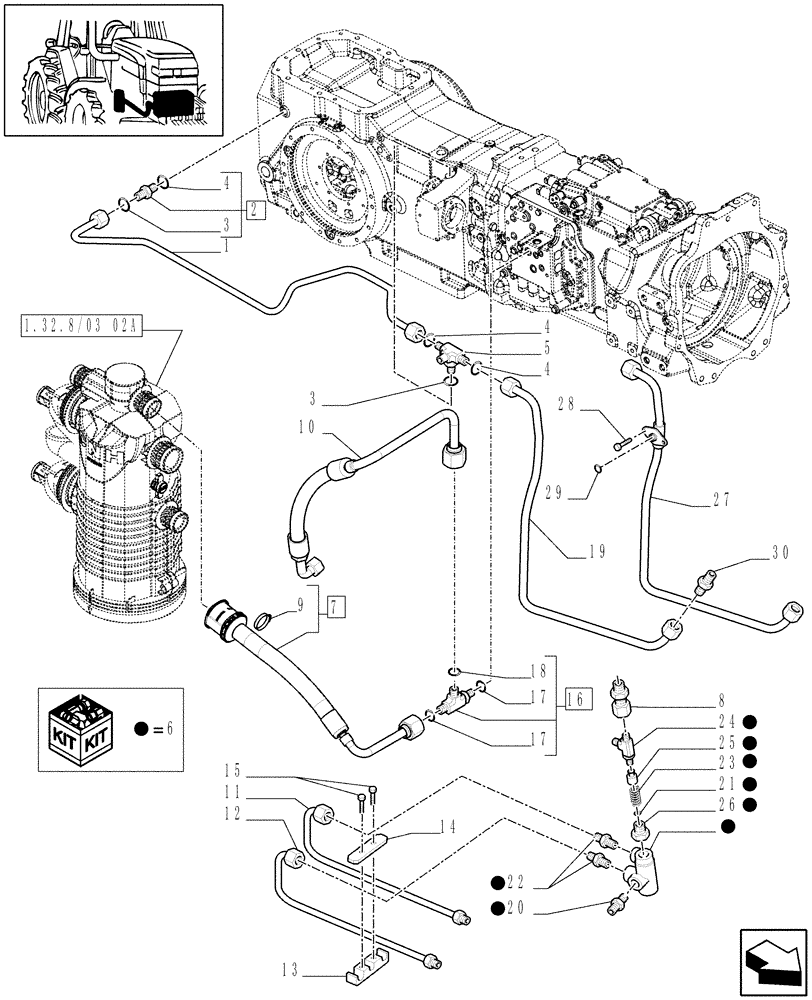

Схема запчастей Case IH MAXXUM 100 - (1.29.7/13[01A]) - 113 L/MIN CCLS PUMP FOR SPS - GEARBOX LUBRICATION PIPING - D6562 - C7070 - (VAR.330835-331836-332836-333836-335836 / 743744) (03) - TRANSMISSION
11
3
6
4
6
8
3
6
6
16
13
1.32.8/03 02a
6
23
6
20
6
27
9
18
6
12
6
5
14
2
15
17
25
4
1
10
17
24
6
19
29
28
4
22
30
26
21
7

Артикул

Название

Примечание

Количество

1

87624551

HYD TUBE

PTO Lube

1шт.

2

5194065

HYD CONNECTOR,M18 x 1.5 x 36mm

1шт.

3

14437685

O-RING,9.30mm ID x 2.40mm

2шт.

4

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

3шт.

5

87303747

TEE

Incl.3,4

1шт.

6

87634972

BY-PASS VALVE

ASSY

1шт.

7

84168507

HOSE,15.90 mm ID x 245.00 mm, SAE 100R3

From Filter, Serial Range: -C6870

1шт.

7

84296391

FLEXIBLE HOSE

From Filter, Start Serial: D6870

1шт.

8

84168451

HYD CONNECTOR

1шт.

9

82039344

HOSE CLAMP,20mm - 32mm

1шт.

10

84168516

HOSE

Bypass Valve Lube, Serial Range: -C6870

1шт.

10

84297046

FLEXIBLE HOSE

Bypass Valve Lube, Start Serial: D6870

1шт.

11

84172716

TUBE,12 mm OD

Oil Cooler

1шт.

12

84172718

TUBE,12 mm OD

1шт.

13

84172921

CLAMP BRACKET

1шт.

14

87636988

BRACKET

1шт.

15

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

2шт.

16

86579702

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB

, Serial Range: -C6870

1шт.

16

5197177

TEE,1"-14 ORFS x 1"-14 ORFS x M18 x 1.5 ORB

, Start Serial: D6870

1шт.

17

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

, Serial Range: -C6870

2шт.

17

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

, Start Serial: D6870

2шт.

18

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

, Serial Range: -C6870

1шт.

18

14437985

O-RING,15.3mm ID x 2.4mm

, Start Serial: D6870

1шт.

19

47123689

HYD TUBE

1шт.

For 30 and 40 KPH Transm.

1шт.

20

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

22

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

2шт.

23

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

1шт.

24

86579705

TEE,1"-14 ORFS x M22 x 1.5 ORB Run

1шт.

25

5169565

VALVE,By-Pass

1шт.

26

47123781

PLUG,M22 x 1.5

1шт.

27

47123530

HYD TUBE

1шт.

For 40E and 50 KPH Transm.

1шт.

28

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

For 40E and 50 KPH Transm.

1шт.

29

577567

O-RING,9.92mm ID x 15.16mm OD x 2.62mm

1шт.

For 40E and 50 KPH Transm.

1шт.

30

81863437

HYD CONNECTOR,M18 x 13/16"-16 ORS

1шт.

Выбрано товаров: 39
