Запчасти Case IH MAXXUM 100 (1.93.3/ T[02]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, OPS AND BELTS - BREAKDOWN - L/ CAB (STD + VAR.330709) - D7342 (10) - OPERATORS PLATFORM/CAB

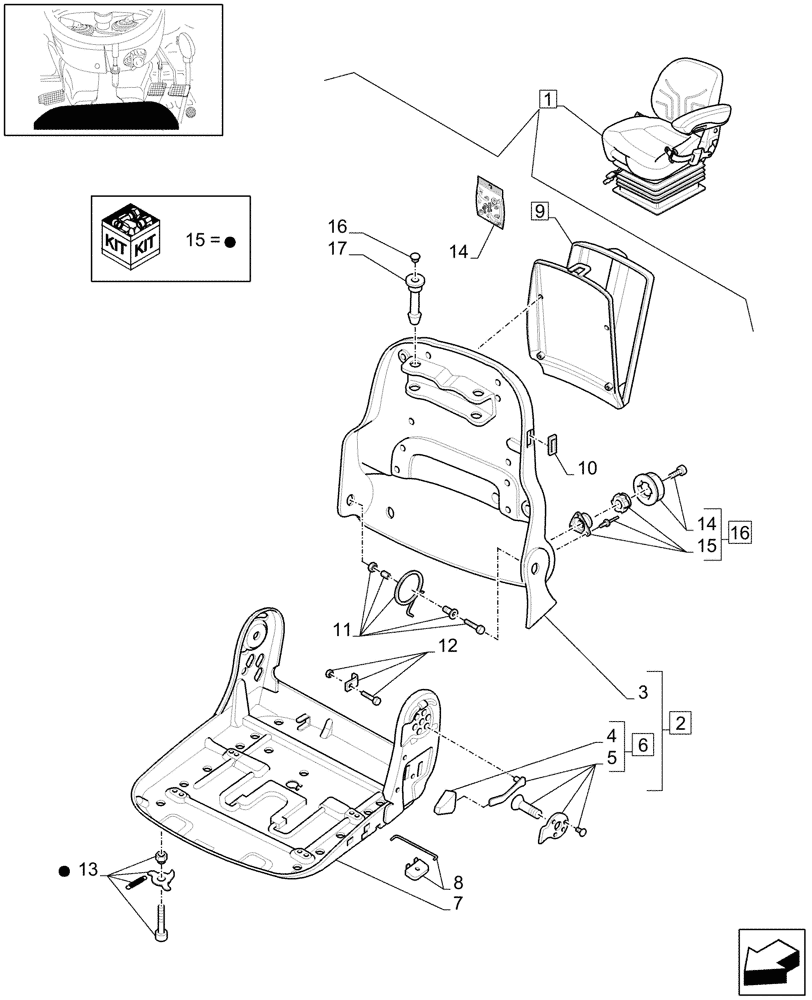

Схема запчастей Case IH MAXXUM 100 - (1.93.3/ T[02]) - DELUXE VINYL SEAT WITH MECHANICAL SUSPENSION, OPS AND BELTS - BREAKDOWN - L/ CAB (STD + VAR.330709) - D7342 (10) - OPERATORS PLATFORM/CAB
15
7
17
14
16
4
2
9
5
15
10
6
14
11
3
8
15
12
15
13
1
16

Артикул

Название

Примечание

Количество

1

47488865

DRIVER SEAT

1шт.

2

84255306

KIT

ASSY, Incl 3, 6

1шт.

3

NSS

NOT SOLD SEPARAT

BACKREST, Incl in 2

1шт.

4

345752A1

HANDLE

1шт.

5

NSS

NOT SOLD SEPARAT

ACTUATION, Incl in 6

1шт.

6

84255307

ADAPTER

1шт.

7

82034966

PAN

SEAT PAN, Incl in 1

1шт.

8

82034959

HANDLE

1шт.

9

71491415

UTILITY HOLDER

ASSY, Incl 17

1шт.

10

47540083

PLUG

1шт.

11

84247562

SET OF PARTS

1шт.

12

84336460

ASSEMBLY

1шт.

13

345775A1

LEVER

1шт.

14

84247569

REPAIR KIT

SMALL PARTS OF LITERATURE BOX

1шт.

15

84191203

CONTROL LEVER

1шт.

16

84255310

COVER

1шт.

17

84280031

BUSHING

1шт.

Выбрано товаров: 17
