Запчасти Case IH MAXXUM 100 (1.93.3/ R[03]) - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (VAR.330710) - D7342 (10) - OPERATORS PLATFORM/CAB

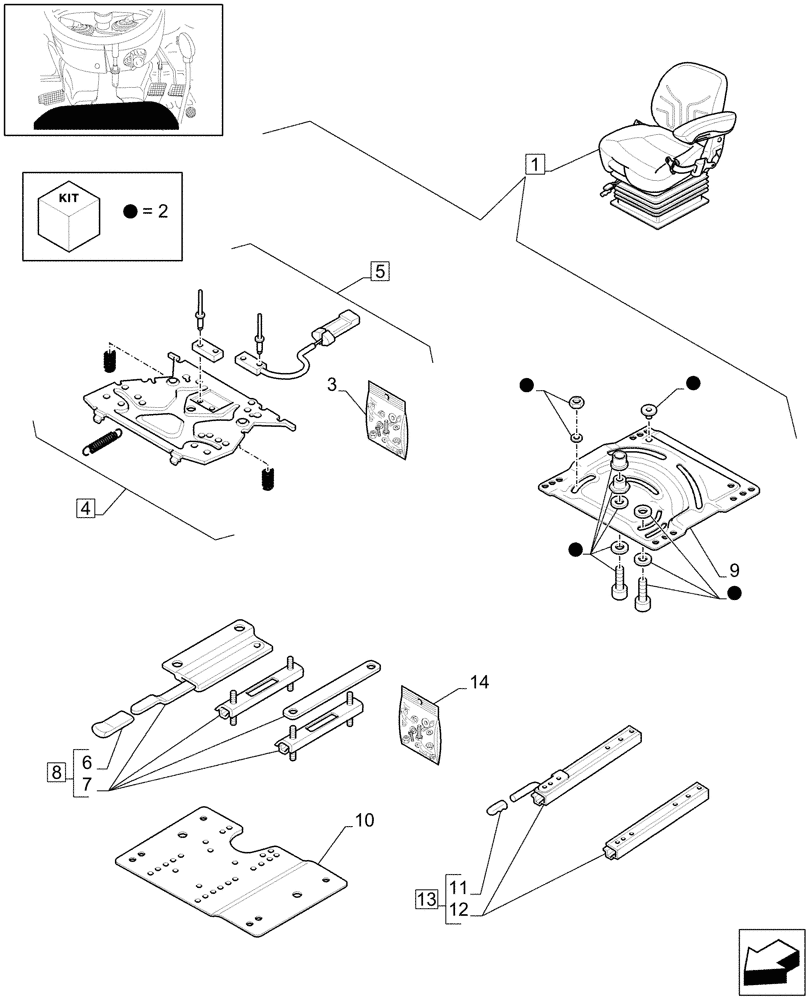

Схема запчастей Case IH MAXXUM 100 - (1.93.3/ R[03]) - SEAT WITH AIR SUSPENSION, BELT AND SWITCH - BREAKDOWN (VAR.330710) - D7342 (10) - OPERATORS PLATFORM/CAB
12
11
13
2
8
1
4
6
2
2
2
14
3
2
9
5
7
10

Артикул

Название

Примечание

Количество

1

47488674

DRIVER SEAT

1шт.

2

1-34-751-712

SET OF PARTS

1шт.

3

84191201

SET OF PARTS

SMALL PARTS SEAT SWITCH

1шт.

4

84253109

COMPENSATOR

ASSY, Incl 3

1шт.

5

84180174

SWITCH

ASSY, Incl 3

1шт.

6

82034956

HANDLE

1шт.

7

NSS

NOT SOLD SEPARAT

FOR/AFT ISOLATOR, Incl in 8

1шт.

8

9971723

KIT

ISOLATOR, ASSY, Incl 6 - 7, 14

1шт.

9

84247568

REPAIR KIT

ASSY, Incl 2

1шт.

10

NSS

NOT SOLD SEPARAT

PLATE, Incl in 1

1шт.

11

9971715

HANDLE

1шт.

12

NSS

NOT SOLD SEPARAT

Incl in 13

1шт.

13

87331929

SET OF PARTS

ASSY, Incl 11 - 12, 14

1шт.

14

47540052

KIT

FIXING PARTS

1шт.

Выбрано товаров: 14
