Запчасти Case IH MAXXUM 100 (1.93.3[02A]) - SEAT - W/ CAB - D6723 (10) - OPERATORS PLATFORM/CAB

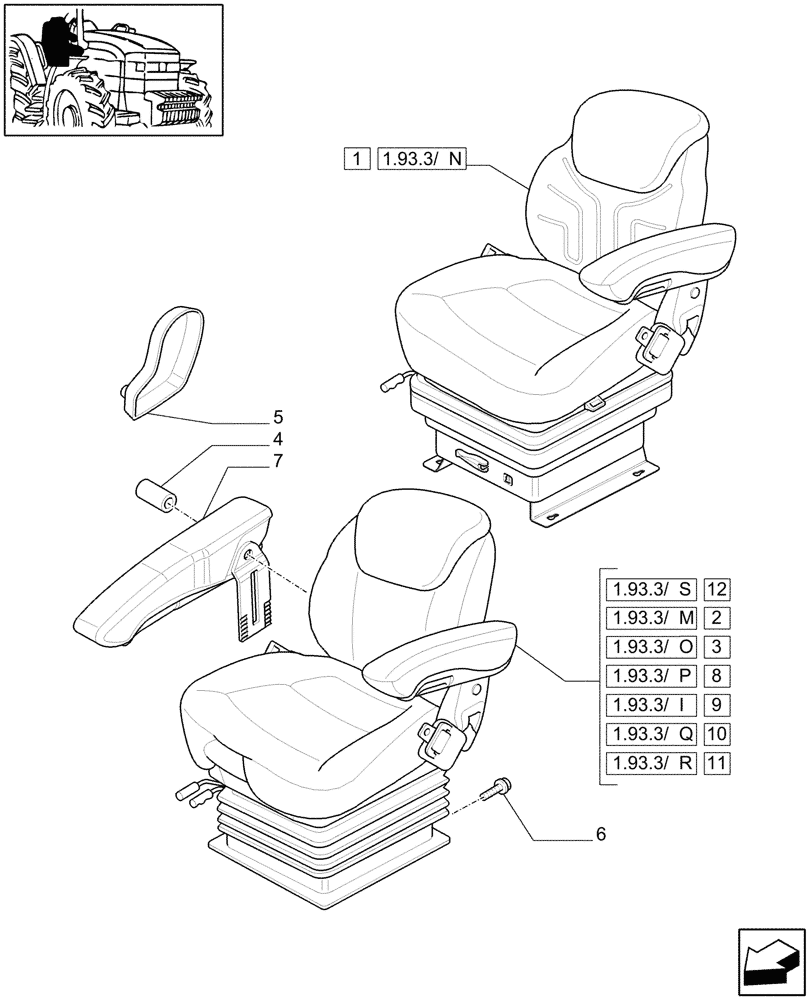

Схема запчастей Case IH MAXXUM 100 - (1.93.3[02A]) - SEAT - W/ CAB - D6723 (10) - OPERATORS PLATFORM/CAB
6
1
4
9
11
3
1.93.3/ p
1.93.3/ o
10
1.93.3/ n
1.93.3/ m
12
1.93.3/ s
7
2
1.93.3/ q
5
1.93.3/ i
1.93.3/ r
8

Артикул

Название

Примечание

Количество

1

84122199

DRIVER SEAT

ASSY, Serial Range: -C7342

1шт.

STD Equipm. for Value and X-Line/Limited Version Deluxe Mech. Seat: Mech. Seat W/Belt and W/Operator presence Switch

1шт.

2

87528647

SEAT

ASSY

1шт.

STD Equipment for Multicontroller Versions: DeluxeAIR Seat W/Belt and Operator Presence Switch

1шт.

3

84122192

DRIVER SEAT

ASSY

1шт.

STD Equipm. for Pro Version Deluxe: AIR Seat W/Belt and W/Operator presence Switch

1шт.

VAR.331709 for X-Line/Limited Version Deluxe: AIR Seat W/Belt and W/Operator Presence Switch

1шт.

4

82032523

COVER

1шт.

Value, X-Line/Limited and Pro Versions only

1шт.

5

82023115

COVER

1шт.

Value, X-Line/Limited and Pro Versions only

1шт.

6

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

7

82025110

ARMREST

1шт.

Value and X-Line/Limited Versions only

1шт.

Value and X-Line/Limited Versions only

1шт.

7

82025111

ARMREST

1шт.

RH Short Seat Arm for MDC, with Mech. Joystick for Front Loader, VAR.330020

1шт.

Value and X-Line/Limited Versions only

1шт.

8

84122191

DRIVER SEAT

ASSY, Serial Range: -C7342

1шт.

VAR.330710 for Value and X-Line/Limited Version Deluxe Mech. Seat: AIR Seat W/Belt and W/Operator Presence Switch

1шт.

9

87572566

SEAT

ASSY

1шт.

VAR.330709 for Multicontroller Version Deluxe: AIR Seat W/Operator Presence Switch, W/Belt and Heated Cushions

1шт.

10

84122197

SEAT

ASSY

1шт.

VAR.330709 for Pro Version Deluxe: AIR Seat W/Operator Presence Switch, W/Belt and Heated Cushions

1шт.

11

47488674

DRIVER SEAT

ASSY, Start Serial: D7342

1шт.

VAR.330710 for Value and X-Line/Limited Version Deluxe Mech. Seat: AIR Seat W/Belt and W/Operator Presence Switch

1шт.

12

47488675

DRIVER SEAT

ASSY, Start Serial: D7342

1шт.

STD Equipm. for Value and X-Line/Limited Version Deluxe Mech. Seat: Mech. Seat W/Belt and W/Operator presence Switch

1шт.

Выбрано товаров: 28
