Запчасти Case IH MAXXUM 100 (1.91.4[05B]) - FRONT MAIN CABLE - D6777 (10) - OPERATORS PLATFORM/CAB

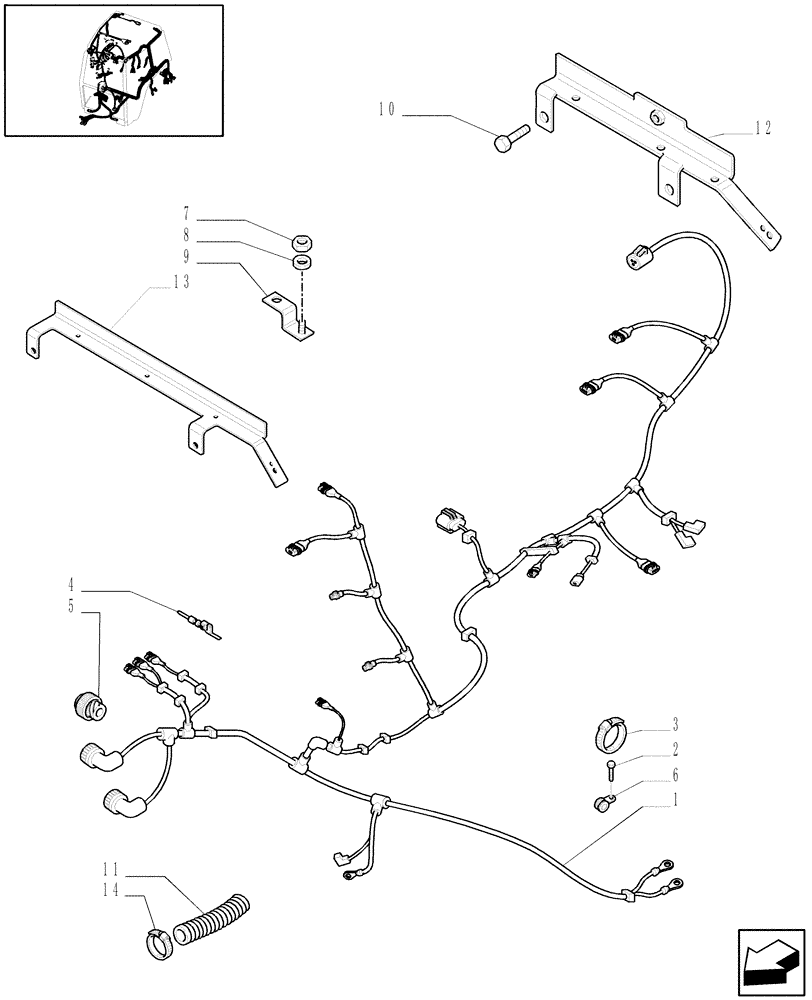

Схема запчастей Case IH MAXXUM 100 - (1.91.4[05B]) - FRONT MAIN CABLE - D6777 (10) - OPERATORS PLATFORM/CAB
2
13
6
5
11
10
7
3
9
12
14
4
1
8

Артикул

Название

Примечание

Количество

1

84150933

WIRE HARNESS

Front Main, Mech., MAX 100, MAX 110

1шт.

Value and X-Line/Limited Versions only

1шт.

1

84150934

WIRE HARNESS

Front Main , Mech., MAX 115, MAX 125, MAX 140

1шт.

Value and X-Line/Limited Versions only

1шт.

1

84150926

WIRE HARNESS

Front Main, Elec. Advanced, MAX 110, MAX 120, MAX 130

1шт.

Pro Version only

1шт.

1

84309118

WIRE HARNESS

Front Main, Elec. Advanced, MAX 115, MAX 125, MAX 140, Start Serial: D6248

1шт.

Pro Version only

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

3

14560287

CABLE TIE,207.00mm L

COLLAR

1шт.

4

82039668

ELEC. TERMINAL PIN,TIN, 0.75MM - 1.50MM, 23.25MM L

1шт.

4

82039669

ELEC. TERMINAL PIN,TIN, 0.75MM - 1.50MM, 21.3MM L

1шт.

5

82039660

MULTIPOLE CONNECTOR,MALE, 51 POLE, YELLOW

Cannon APD, Yellow

1шт.

5

82039661

MULTIPOLE CONNECTOR,MALE, 51 POLE, GREEN

Cannon APD, Green

1шт.

5

82039662

MULTIPOLE CONNECTOR,MALE, 51 POLE, PURPLE

Cannon APD, Purple

1шт.

5

82039663

MULTIPOLE CONNECTOR,MALE, 51 POLE, BROWN

Cannon APD, Brown

1шт.

5

82039664

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, YELLOW

Receptacle, Yellow

1шт.

5

82039665

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, GREEN

Receptacle, Green

1шт.

5

82039666

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, PURPLE

Receptacle, Purple

1шт.

5

82039667

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, BROWN

Receptacle, Brown

1шт.

6

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

2шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

26MM dia.

3шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

87614194

BRACKET

1шт.

10

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

11

87668898

FLEXIBLE SHEATH

L=400MM

1шт.

12

87677802

BRACKET

MAX110, MAX120, MAX130

1шт.

Pro Version only

1шт.

13

87677801

BRACKET

MAX115, MAX125, MAX140

1шт.

Pro Version only

1шт.

14

83933061

STRAP

2шт.

Выбрано товаров: 33
