Запчасти Case IH MAXXUM 100 (1.91.4[05]) - FRONT MAIN CABLE - C6085 (10) - OPERATORS PLATFORM/CAB

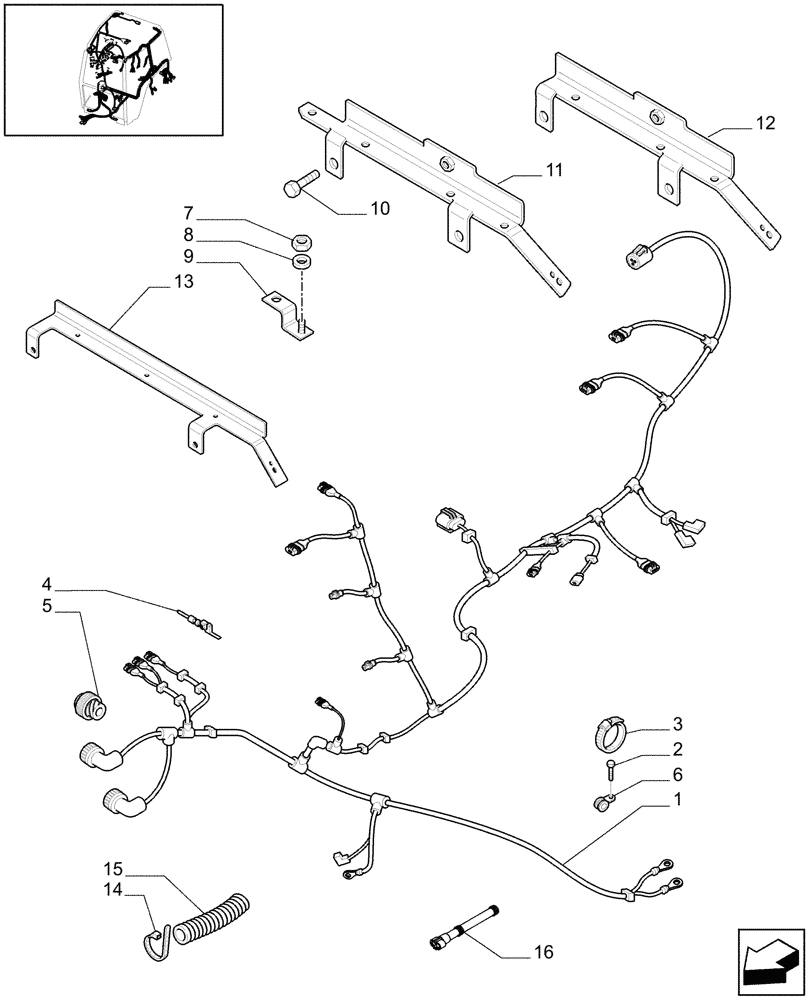

Схема запчастей Case IH MAXXUM 100 - (1.91.4[05]) - FRONT MAIN CABLE - C6085 (10) - OPERATORS PLATFORM/CAB
7
6
10
5
3
11
2
8
1
16
15
13
12
4
9
14

Артикул

Название

Примечание

Количество

1

87305182

WIRE HARNESS

Front Main, Mech. Advanced, MAX 100, MAX 110, Serial Range: -C5759

1шт.

Value and X-Line/Limited Versions only

1шт.

1

87644498

WIRE HARNESS

Front Main, Mech., MAX 100, MAX 110, Start Serial: D5759

1шт.

Value and X-Line/Limited Versions only

1шт.

1

87305184

WIRE HARNESS

Front Main, Mech. Advanced, MAX 115, MAX 125, MAX 140, Serial Range: -C5759

1шт.

Value and X-Line/Limited Versions only

1шт.

1

87644499

WIRE HARNESS

Front Main, Mech., MAX 115, MAX 125, MAX 140, Start Serial: D5759

1шт.

Value and X-Line/Limited Versions only

1шт.

1

87627012

WIRE HARNESS

Front Main, Elec. Advanced, MAX 110, MAX 120, MAX 130, Serial Range: -C5870

1шт.

Pro Version only

1шт.

1

87626997

WIRE HARNESS

Front Main, Elec. Advanced, MAX 115, MAX 125, MAX 140, Serial Range: -C5870

1шт.

Pro Version only

1шт.

1

87673917

WIRE HARNESS

Front Main, Elec. Advanced, MAX 110, MAX 120, MAX 130, Serial Range: D5870-C6074

1шт.

Pro Version only

1шт.

1

87673918

WIRE HARNESS

Front Main, Elec. Advanced, MAX 115, MAX 125, MAX 140, Serial Range: D5870-C6074

1шт.

Pro Version only

1шт.

1

87470477

WIRE HARNESS

Front Main, Elec. Advanced, MAX 110, MAX 120, MAX 130, Start Serial: D6074

1шт.

Pro Version only

1шт.

1

87470478

WIRE HARNESS

Front Main, Elec. Advanced, MAX 115, MAX 125, MAX 140, Start Serial: D6074

1шт.

Pro Version only

1шт.

2

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

2

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

3

14560287

CABLE TIE,207.00mm L

1шт.

4

82039668

ELEC. TERMINAL PIN,TIN, 0.75MM - 1.50MM, 23.25MM L

1шт.

4

82039669

ELEC. TERMINAL PIN,TIN, 0.75MM - 1.50MM, 21.3MM L

1шт.

5

82039660

MULTIPOLE CONNECTOR,MALE, 51 POLE, YELLOW

Cannon APD, Yellow

1шт.

5

82039661

MULTIPOLE CONNECTOR,MALE, 51 POLE, GREEN

Cannon APD, Green

1шт.

5

82039662

MULTIPOLE CONNECTOR,MALE, 51 POLE, PURPLE

Cannon APD, Purple

1шт.

5

82039663

MULTIPOLE CONNECTOR,MALE, 51 POLE, BROWN

Cannon APD, Brown

1шт.

5

82039664

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, YELLOW

Receptacle, Yellow

1шт.

5

82039665

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, GREEN

Receptacle, Green

1шт.

5

82039666

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, PURPLE

Receptacle, Purple

1шт.

5

82039667

MULTIPOLE CONNECTOR,FEMALE, 51 POLE, BROWN

Receptacle, Brown

1шт.

6

10441990

CLAMP,24mm, Coat, 7mm Bolt Hole, P Type

2шт.

6

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

3шт.

7

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

8

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

9

87614194

BRACKET

1шт.

10

14301824

HEX SOC SCREW,M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

11

87677801

BRACKET

, Serial Range: -C5777

1шт.

12

87677802

BRACKET

MAX110, MAX120, MAX130, Start Serial: D5777

1шт.

Pro Version only

1шт.

13

87677801

BRACKET

MAX115, MAX125, MAX140, Start Serial: D5777

1шт.

Pro Version only

1шт.

14

83933061

STRAP

2шт.

15

87668898

FLEXIBLE SHEATH

400MM

1шт.

16

82036572

WIRE HARNESS,120 ohm

CAN Terminator

1шт.

Выбрано товаров: 47
