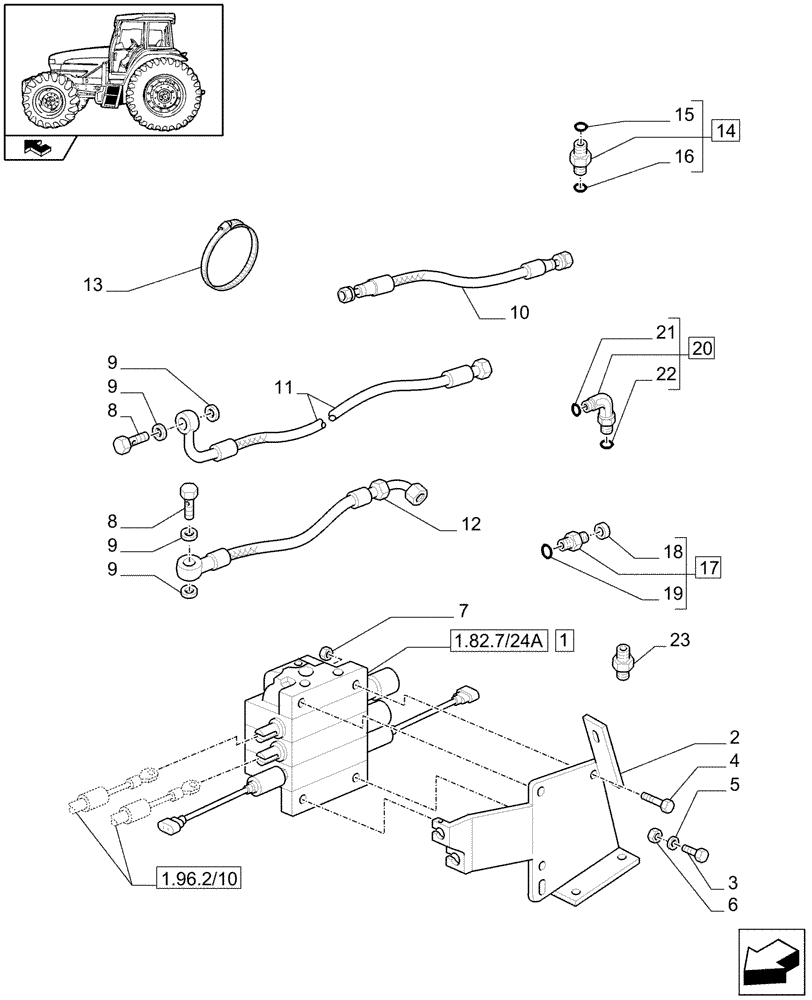

Запчасти Case IH MAXXUM 100 (1.82.7/37) - NAR LOADER READY WITH 3 ELEMENTS MID MOUNT VALVES - CONTROL VALVE AND PIPES (VAR.333824) (07) - HYDRAULIC SYSTEM

1

47367743

VALVE SECTION

1шт.

2

87568641

BRACKET

1шт.

3

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

16100814

NUT,M8, Cl 8, DAC

3шт.

7

11701711

NUT,Hex, M10, Cl 8, ZND

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

2шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

4шт.

10

82036909

FLEXIBLE HOSE,6.35mm ID x 1880mm L, SAE 100R2

1шт.

11

82034041

FLEXIBLE HOSE,15.88mm ID x 750mm L, SAE 100R2

1шт.

12

87736275

HYDRAULIC HOSE,15.88mm ID x 2000mm L, SAE 100R2

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

3шт.

14

82019638

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

1шт.

15

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

16

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

17

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

9/16"-18 UN-2A/M10x1

1шт.

18

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

19

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

20

82034042

ELBOW

1шт.

21

5185513

O-RING,1.78mm Thk x 18.77mm ID, 85 Duro

1шт.

22

14438185

O-RING,24mm ID x 3mm

1шт.

23

5185045

HYD CONNECTOR

1шт.
