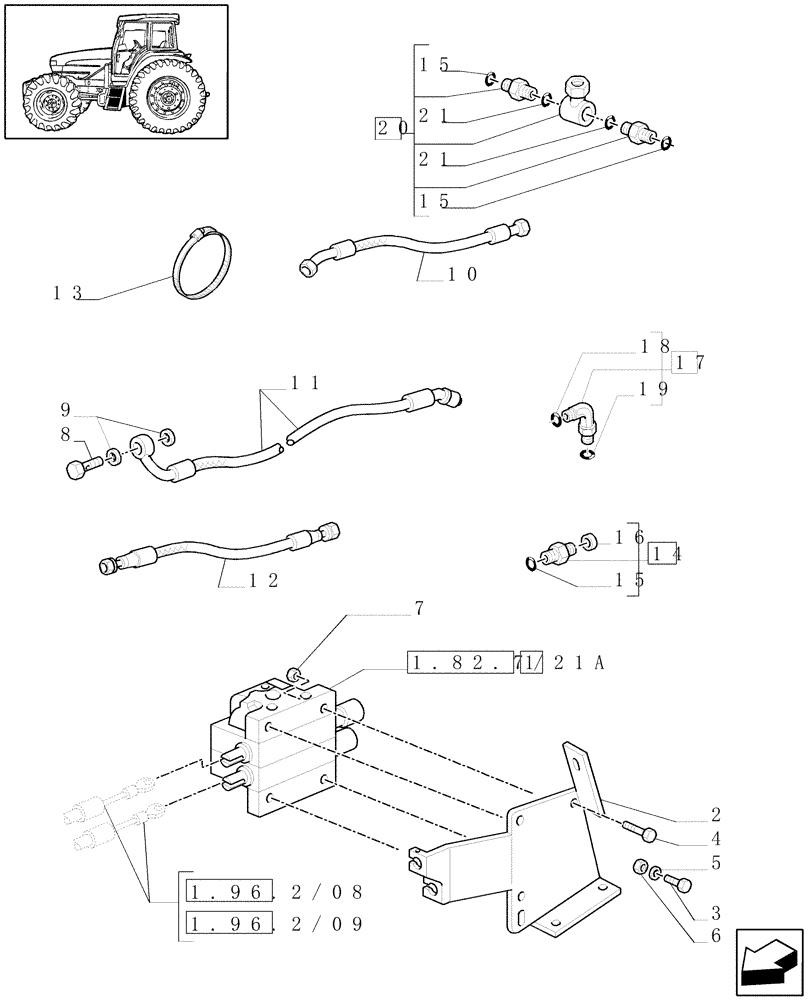

Запчасти Case IH MAXXUM 100 (1.82.7/22[01A]) - LOADER READY WITH 2 ELEMENTS MID MOUNT VALVES - CONTROL VALVE AND PIPES - D6432 (VAR.330820-332820-330821-331821-332821-334821 / 743745; 334820 / 743746) (07) - HYDRAULIC SYSTEM

1

82019733

VALVE SECTION

ASSY, Serial Range: -C7374

1шт.

1

47367745

VALVE SECTION

ASSY, Start Serial: D7374

1шт.

1

47367745R

REMAN-HYD VALVE

Reman Assy

1шт.

1

47367745C

CORE-VALVE HYD

Core Return Number

1шт.

2

87568641

BRACKET

1шт.

3

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

3шт.

4

14420371

SCREW,M10 x 35mm, Cl 12.9

2шт.

4

14420571

HEX SOC SCREW,M10 x 1.5 x 45mm, Cl 12.9

1шт.

5

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

3шт.

6

43362

NUT,M8 x 1.25, Cl 10

3шт.

7

11701721

NUT,M10, Cl 10

3шт.

8

5112588

BANJO BOLT,M22 x 1.5 x 40mm

1шт.

9

5165897

SEALING WASHER,22.7mm ID x 30mm OD x 2mm Thk

2шт.

10

84202626

FLEXIBLE HOSE

MMV Load Sense, 940MM

1шт.

11

84202624

HOSE ASSY.

Return, 510MM

1шт.

12

84202623

HYDRAULIC HOSE

MMv Supply, 685MM

1шт.

13

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

3шт.

14

82016839

HYD CONNECTOR,Straight, M10 x 1 ORFS, 9/16"-18" ORB

1шт.

15

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

16

82016610

SEAL,8.4mm ID x 11.9mm OD x 1mm Thk

1шт.

17

5194728

90 ELBOW

M22 x 1.5

1шт.

18

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

20

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

1шт.

Maxxum 125 x-Line/Limited Versions, VAR.334820

1шт.

21

81827528

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

Maxxum 125 x-Line/Limited Versions, VAR.334820

1шт.
