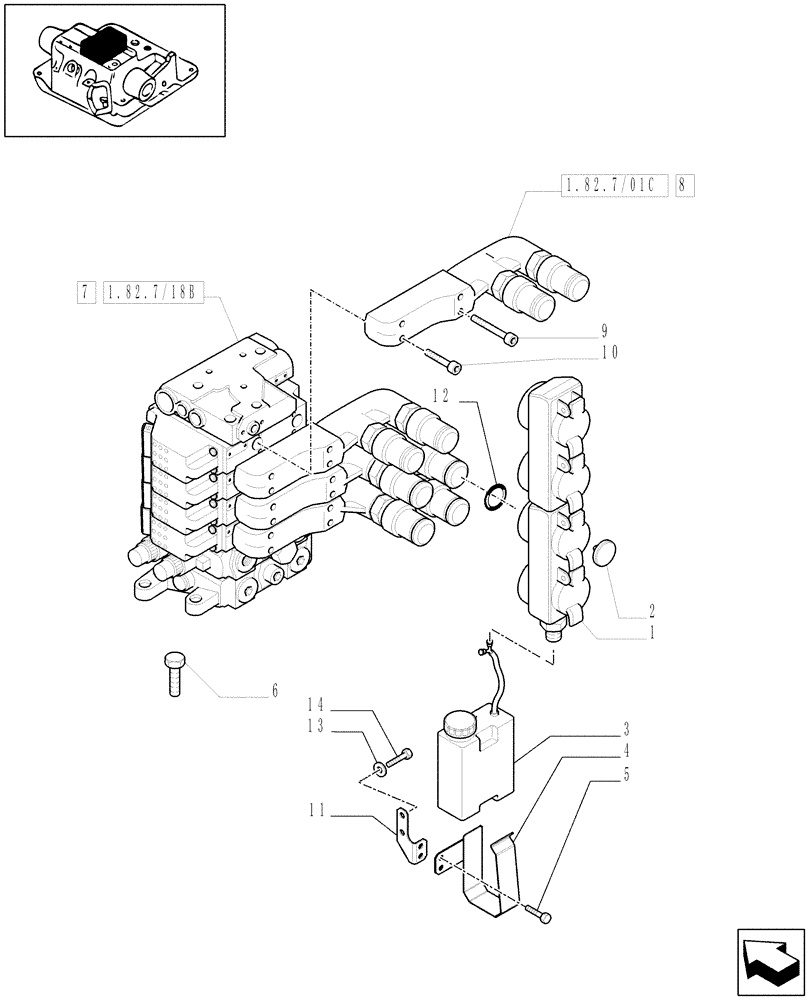

Запчасти Case IH MAXXUM 100 (1.82.7/18[01B]) - 4 ELECTROHYDRAULIC REAR REMOTE CONTROL VALVES (EHS1) - DISTRIB., COVER AND OIL COLLECTOR - D6788 (VAR.330862) (07) - HYDRAULIC SYSTEM

1

84293792

DUST CAP

Incl.2, 12

2шт.

2

82029356

SEAL,20.00mm OD x 3.00mm

Black

8шт.

3

84284864

RESERVOIR, HYDRAULIC

1шт.

4

84312030

SUPPORT

1шт.

5

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

6

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

7

84266085

CONTROL VALVE

1шт.

8

87381965

QUICK MALE COUPLING

1шт.

9

14305671

SCREW,M6 x 35mm, Cl 12.9

2шт.

10

14306071

SCREW,M6 x 50mm, Cl 12.9

2шт.

11

84311423

SUPPORT

1шт.

12

14454580

O-RING,34.65mm ID x 1.78mm

4шт.

13

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

14

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
