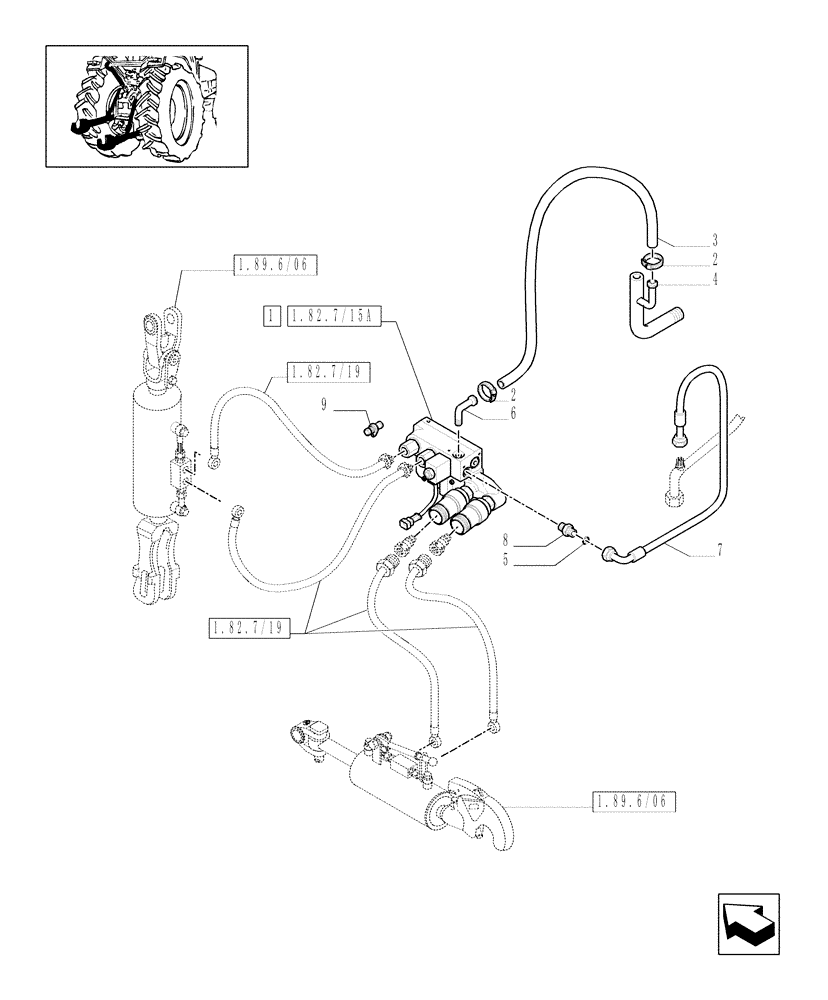

Запчасти Case IH MAXXUM 100 (1.82.7/15[02]) - 4 REMOTES(2NC+2CONFIG) FOR CCLS PUMP FOR EDC AND WITH HYDR. ADJUST LINK.-CONTROL VALVE (VAR.334845) (07) - HYDRAULIC SYSTEM

1

87381996

CONTROL VALVE

ASSY

1шт.

2

10187090

HOSE CLAMP,16mm - 18mm

D=16-18

2шт.

3

87310968

FLEXIBLE HOSE,10.00 mm ID x 1000.00 mm

1шт.

4

47135760

TUBE

1шт.

5

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

2шт.

6

87310967

BREATHER

1шт.

7

87302784

FLEXIBLE HOSE,6.4mm ID x 645mm L

9/16"-18, 645 mm

1шт.

8

47135740

HYD CONNECTOR

1/4BSPP, 9/16"-18

1шт.

9

47135746

STOP PLUG

2шт.
