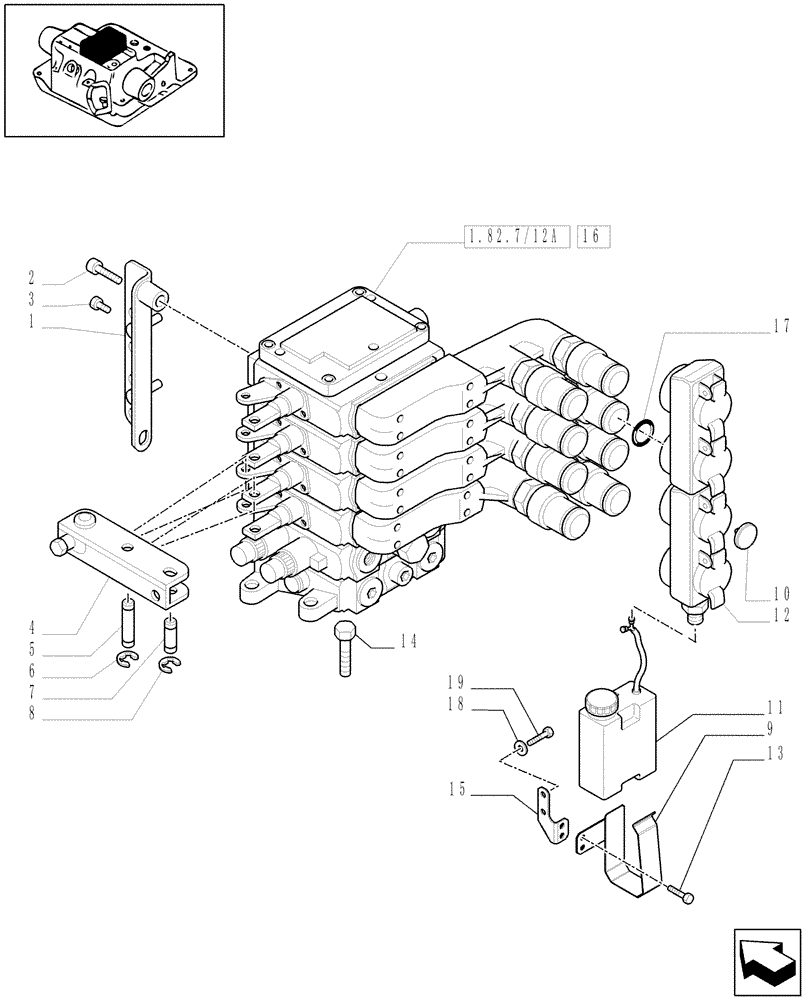

Запчасти Case IH MAXXUM 100 (1.82.7/12[01A]) - 4 REMOTES (2NC+2CONFIG) FOR FIXED DISPLACEMENT PUMP FOR EDC AND RELEVANT PARTS - D6788 (VAR.331845) (07) - HYDRAULIC SYSTEM

1

87358965

STOP

1шт.

2

14306731

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 10.9, Full Thd

1шт.

3

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

1шт.

4

87358094

LEVER

4шт.

5

5193177

PIN,6mm OD x 29.48mm L

4шт.

6

11063971

SPRING CLIP,M6

D=6

8шт.

7

5113008

PIN,8mm OD x 26mm L

D=8

4шт.

8

9990741

SNAP RING,M8, Ext

8шт.

9

84312030

SUPPORT

1шт.

10

82029895

DISC,20mm D, Black

Black

8шт.

11

84284864

RESERVOIR, HYDRAULIC

, Serial Range: -C7117

1шт.

11

84287277

RESERVOIR, HYDRAULIC

, Start Serial: D7117

1шт.

12

84293792

DUST CAP

Incl. 10, 17, Serial Range: -C7117

2шт.

12

84338824

DUST CAP

Incl. 10, 17, Start Serial: D7117

2шт.

13

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

14

14307524

HEX SOC SCREW,M10 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

15

84311423

SUPPORT

1шт.

16

87311386

CONTROL VALVE

ASSY

1шт.

17

14454580

O-RING,34.65mm ID x 1.78mm

4шт.

18

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

19

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
