(1.82.7/01C) - QUICK HITCH ASSEMBLY & RELATED PARTS

Запчасти Case IH MAXXUM 100 (1.82.7/01C) - QUICK HITCH ASSEMBLY & RELATED PARTS (07) - HYDRAULIC SYSTEM

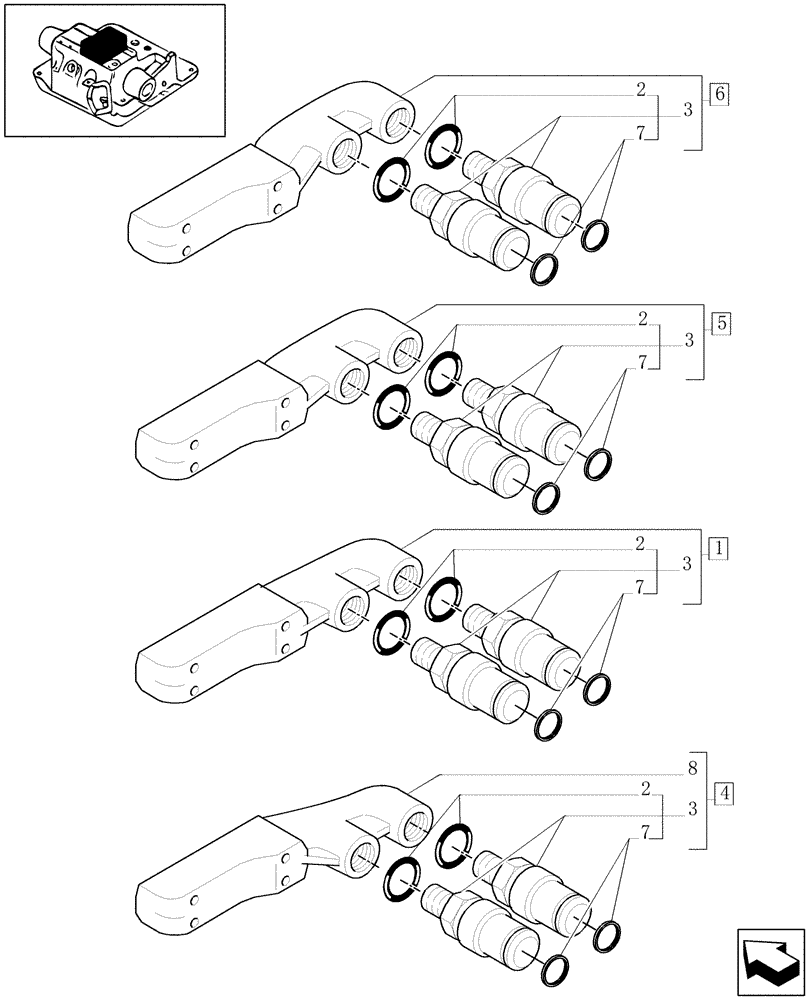

Схема запчастей Case IH MAXXUM 100 - (1.82.7/01C) - QUICK HITCH ASSEMBLY & RELATED PARTS (07) - HYDRAULIC SYSTEM
8
7
3
6
7
2
7
3
2
3
7
1
2
4
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87381963

QUICK MALE COUPLING

ASSY

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

8шт.

3

87381944

COUPLING, QUICK, FEM

8шт.

4

87381958

QUICK MALE COUPLING

ASSY

1шт.

5

87381964

QUICK MALE COUPLING

ASSY

1шт.

with Four Remote Valves

1шт.

6

87381965

QUICK MALE COUPLING

ASSY

1шт.

with Four Remote Valves

1шт.

7

87382012

SEAL KIT

8шт.

8

47123058

HOLDER

1шт.

Выбрано товаров: 10
