(1.82.6/03[01]) - TWO SUPPLEMENTARY CYLINDERS (50MM.)-LIFTER, PIST. AND CYL. (VAR.330840-331840-332840-333840-330841)

Запчасти Case IH MAXXUM 100 (1.82.6/03[01]) - TWO SUPPLEMENTARY CYLINDERS (50MM.)-LIFTER, PIST. AND CYL. (VAR.330840-331840-332840-333840-330841) (07) - HYDRAULIC SYSTEM

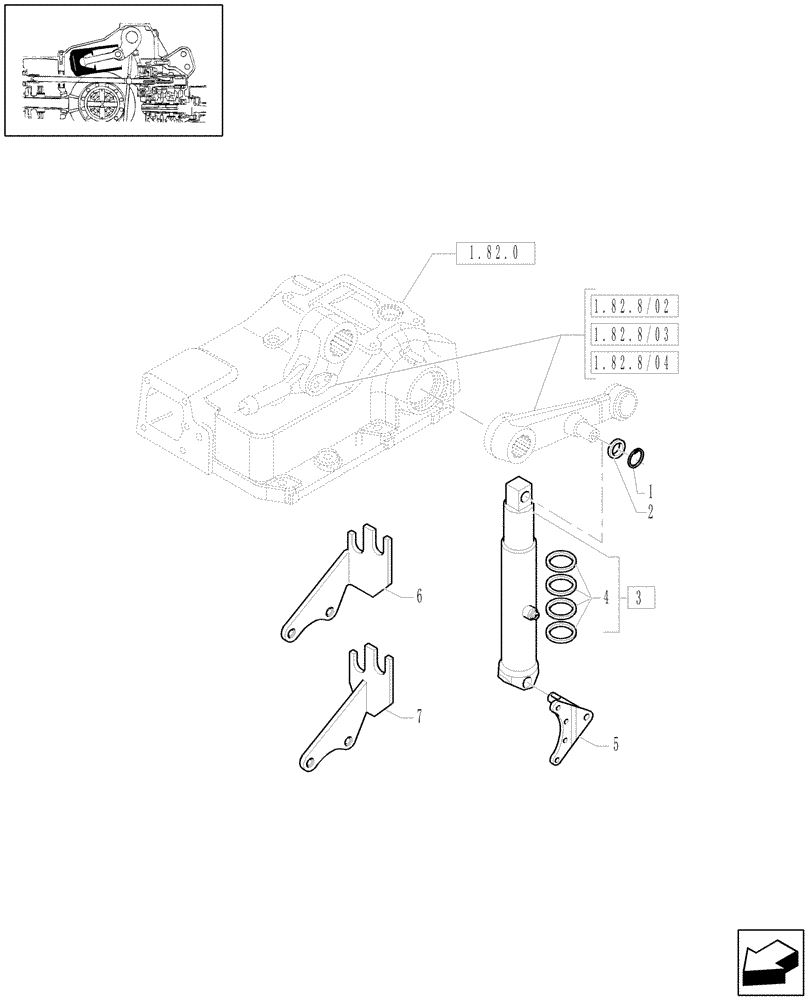

Схема запчастей Case IH MAXXUM 100 - (1.82.6/03[01]) - TWO SUPPLEMENTARY CYLINDERS (50MM.)-LIFTER, PIST. AND CYL. (VAR.330840-331840-332840-333840-330841) (07) - HYDRAULIC SYSTEM
4
5
3
1
7
2
6
1.82.8/02
1.82.8/03
1.82.8/04
1.82.0
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

11067676

SNAP RING,M28, Ext

2шт.

2

44018747

WASHER,28mm ID x 40mm OD x 3mm Thk

28x40x35

2шт.

3

47134496

LIFT CYLINDER,50mm Rod, 170mm Stroke

Includes Ref. 4

2шт.

4

47134497

SEAL KIT

2шт.

5

5191007

SUPPORT

LH

1шт.

W/Light Rear Axle

1шт.

5

5191009

SUPPORT

RH

1шт.

W/Light Rear Axle

1шт.

5

5191004

SUPPORT

LH

1шт.

W/Heavy Duty Rear Axle

1шт.

5

5191006

SUPPORT

RH

1шт.

W/Heavy Duty Rear Axle

1шт.

6

87353466

SUPPORT

TS100A, TS110A

2шт.

W/Light Rear Axle

1шт.

7

87353473

SUPPORT

2шт.

W/Heavy Duty Rear Axle

1шт.
