(1.82.4/01) - MDC FOR HEAVY DUTY AXLE - LOAD SENSING VALVE (VAR.330840-331840-331914)

Запчасти Case IH MAXXUM 100 (1.82.4/01) - MDC FOR HEAVY DUTY AXLE - LOAD SENSING VALVE (VAR.330840-331840-331914) (07) - HYDRAULIC SYSTEM

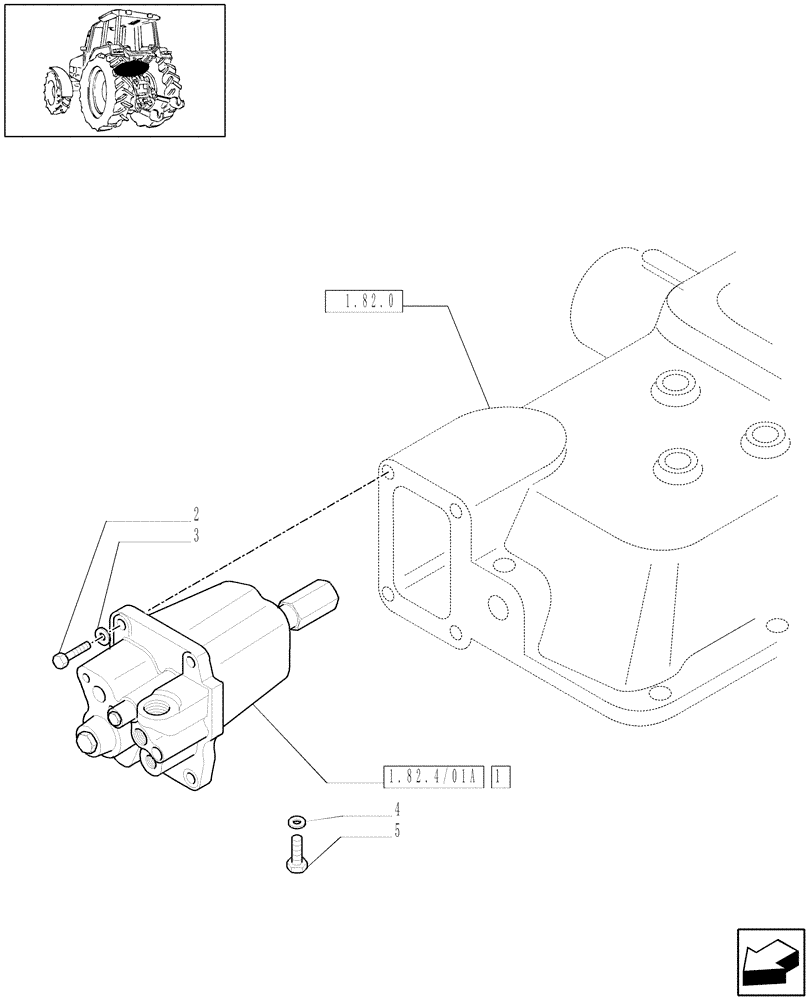

Схема запчастей Case IH MAXXUM 100 - (1.82.4/01) - MDC FOR HEAVY DUTY AXLE - LOAD SENSING VALVE (VAR.330840-331840-331914) (07) - HYDRAULIC SYSTEM
5
3
1.82.0
1
2
4
1.82.4/01a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87306808

CONTROL VALVE

ASSY, Load Sensing

1шт.

2

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

3

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

4

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

D=10

1шт.

5

15971334

BOLT,Hex, M10 x 1.25 x 75mm, Cl 10.9

1шт.
