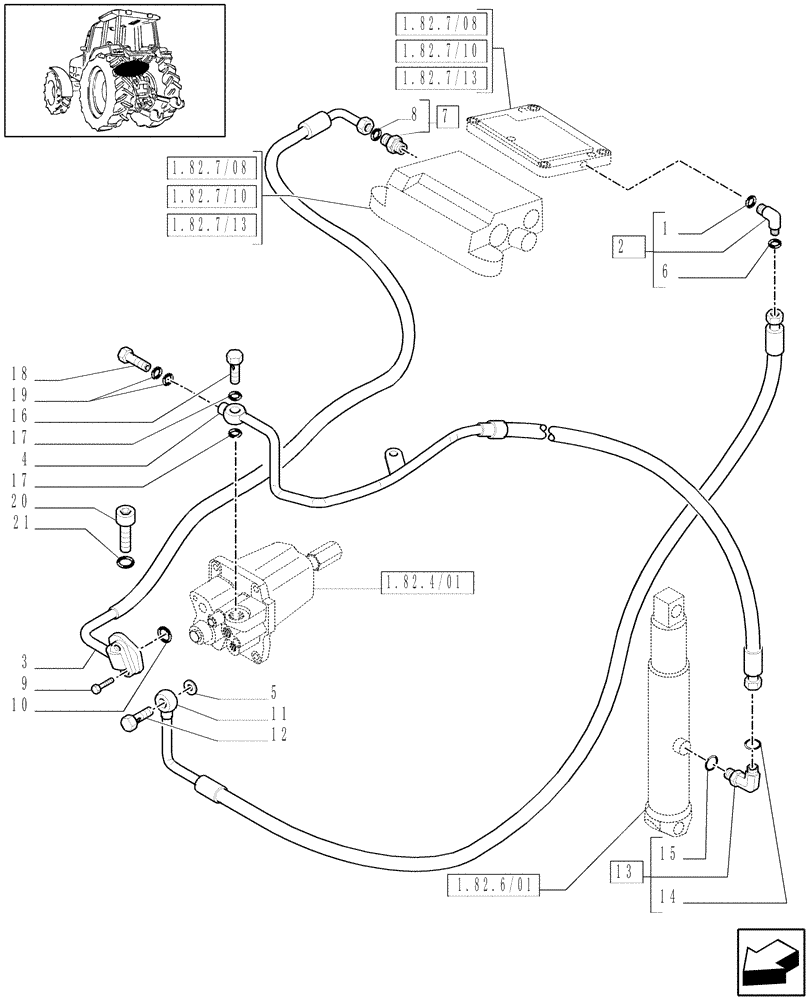

Запчасти Case IH MAXXUM 100 (1.82.1/06[02]) - 2/3/4 CONTROL VALVES CCLS (MDC) - LIFTER, LINES (VAR.332849-334844-335845) (07) - HYDRAULIC SYSTEM

1

5185509

O-RING,1.78mm Thk x 7.66mm ID, 85 Duro

1шт.

2

47123008

ELBOW

1шт.

3

87559739

HOSE

1шт.

4

87316659

FLEXIBLE HOSE

LH

1шт.

5

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

D=10

1шт.

6

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

7

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

M22x1.5

1шт.

8

14438185

O-RING,24mm ID x 3mm

2шт.

9

10902734

SCREW,Hex, M6 x 28mm, Cl 10.9, Full Thd

2шт.

10

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

2шт.

11

87316999

FLEXIBLE HOSE

1шт.

12

11904111

BANJO BOLT,M10 x 1 x 19mm

1шт.

13

5194076

ELBOW,90 Deg, 11/16-16 ORFS x M16 x 1.5 ORB

M16x1.5

1шт.

14

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

15

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

16

47131904

BANJO BOLT

M18X1.5X39

1шт.

17

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

D=18

2шт.

18

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

19

5169544

SEAL,14.7mm ID x 22mm OD x 1.5mm Thk

D=14

2шт.

20

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
