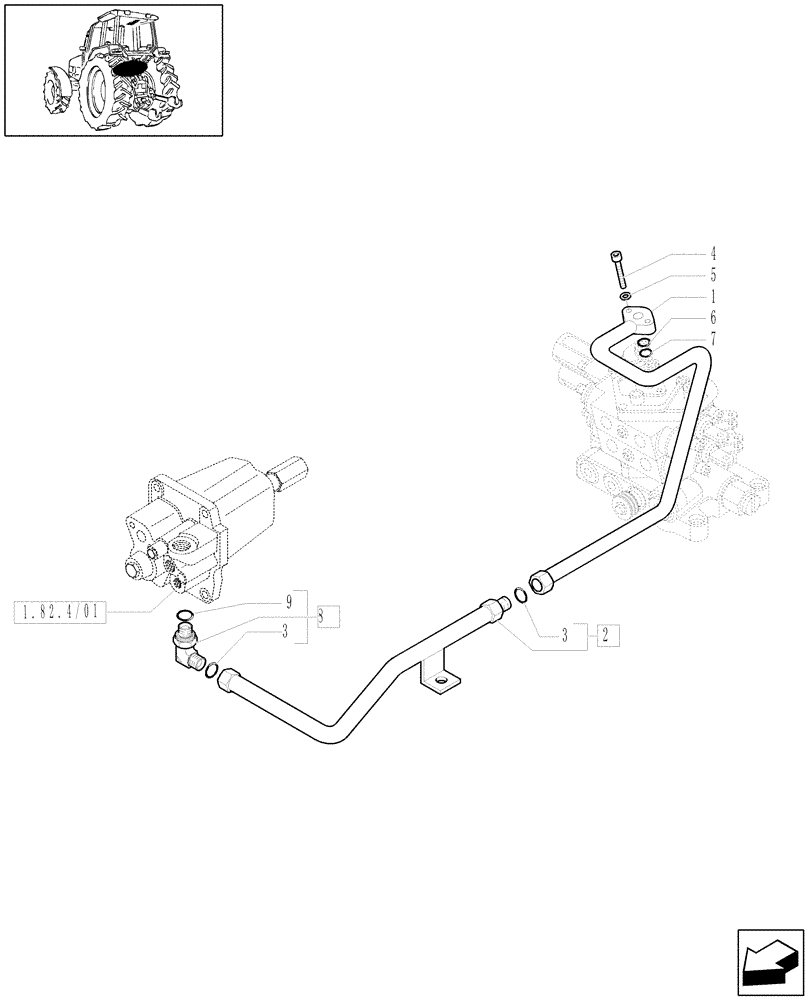

Запчасти Case IH MAXXUM 100 (1.82.1/06[01]) - 2/3/4 CONTROL VALVES CCLS (MDC) - LIFTER, LINES (VAR.332849-334844-335845) (07) - HYDRAULIC SYSTEM

1

87305027

TUBE

1шт.

2

47137561

TUBE

1"-14

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

6

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

7

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

3шт.

8

5192286

90 ELBOW,1-14" ORFS x M22 x 1.5

M22x15.1"-14

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.
