(1.81.9/11) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926)

Запчасти Case IH MAXXUM 100 (1.81.9/11) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926) (07) - HYDRAULIC SYSTEM

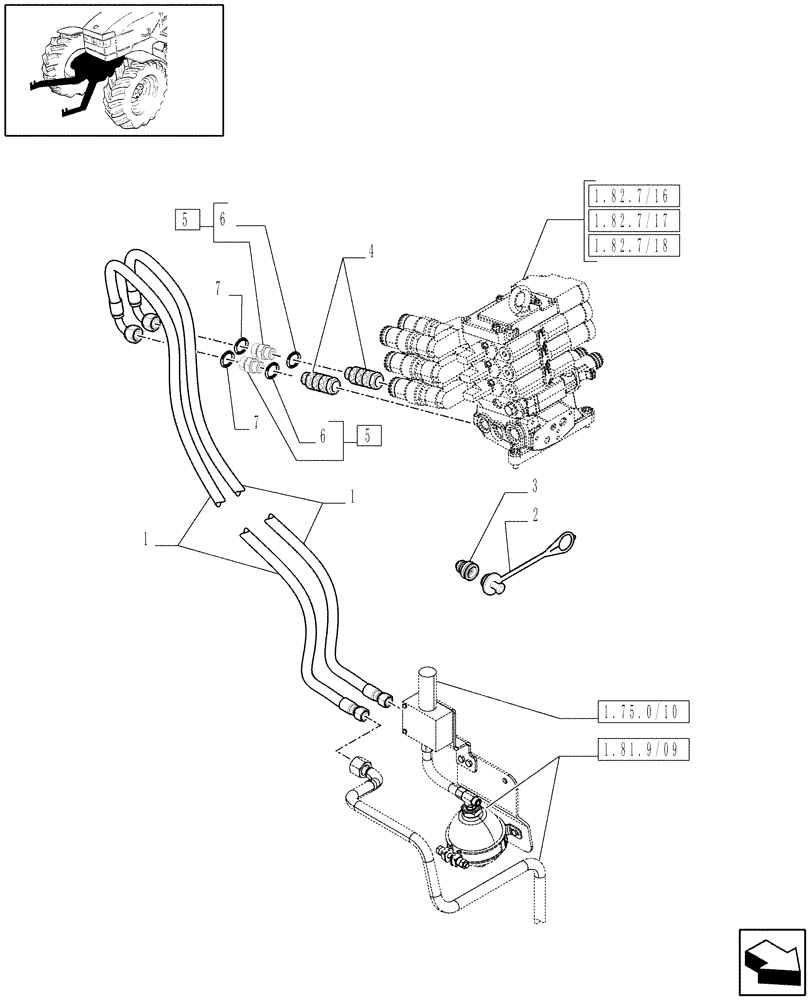

Схема запчастей Case IH MAXXUM 100 - (1.81.9/11) - TUBES FOR FRONT HPL FROM ELECTROHYDRAULIC REMOTE VALVES (VAR.331926) (07) - HYDRAULIC SYSTEM
7
1
1
6
7
1.81.9/09
1.82.7/18
1.82.7/17
1.82.7/16
1.75.0/10
3
2
5
6
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47057676

FLEXIBLE HOSE,Hyd, 12mm ID x 2860mm L

2860MM

2шт.

MAX100, MAX110, MAX120, MAX130

1шт.

1

47057675

FLEXIBLE HOSE,Hyd, 12mm ID x 3100mm L

3100MM

2шт.

MAX115, MAX125, MAX140

1шт.

2

5179576

PLUG,24mm, Green

Green

2шт.

3

47127559

COUPLING, QUICK, FEM

2шт.

4

83972881

COUPLING

2шт.

5

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

2шт.

6

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

7

164380

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

Выбрано товаров: 10
