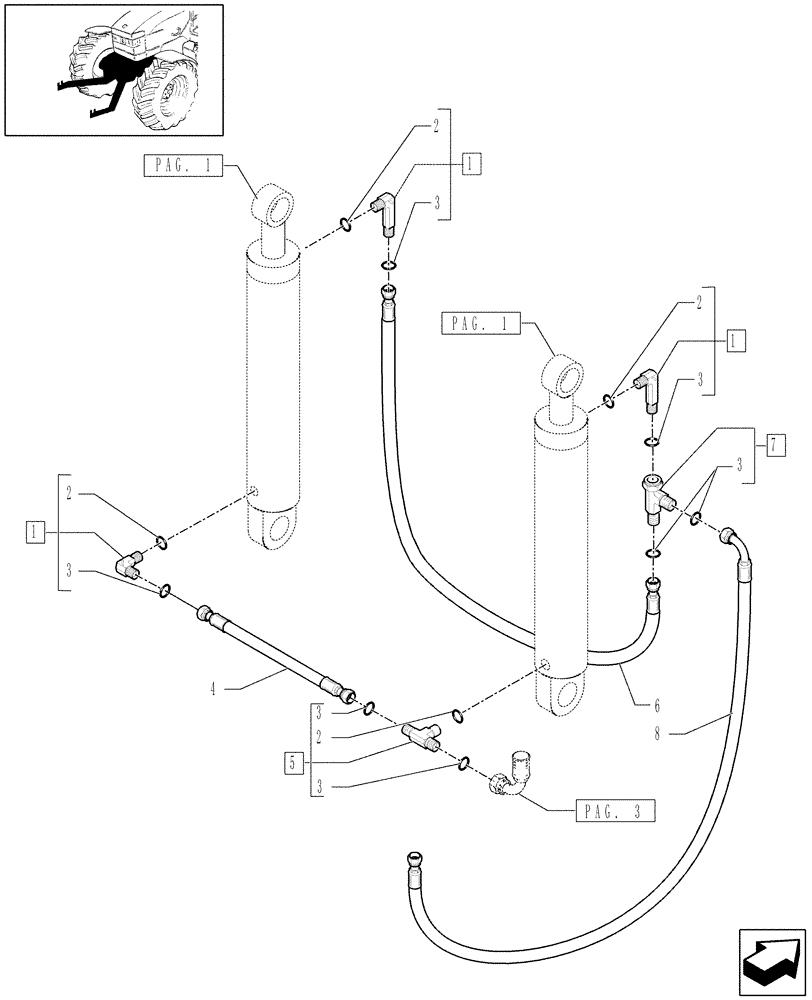

Запчасти Case IH MAXXUM 100 (1.81.9/04[04]) - INTEGRATED FRONT HPL - PIPES - C6519 (VAR.330831-331831-332831-333831) (07) - HYDRAULIC SYSTEM

1

5185052

90 ELBOW,13/16"-16 x M18 x 1.5

13/16"-16, M18 x 1.5

3шт.

2

14437985

O-RING,15.3mm ID x 2.4mm

4шт.

3

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

7шт.

4

47057656

FLEXIBLE HOSE,Hyd, 10mm ID x 375mm L

13/16"-16, 375 mm

1шт.

5

47057673

TEE

13/16"-16, M8 x 1.5

1шт.

6

47057655

FLEXIBLE HOSE,Hyd, 10mm ID x 700mm L

13/16"-16, 700 mm

1шт.

7

5194079

TEE

13/16"-16, Includes Ref. 3

1шт.

8

47057654

FLEXIBLE HOSE,Hyd, 12mm ID x 600mm L

13/16"-16, 600 mm

1шт.
