Запчасти Case IH MAXXUM 100 (1.81.9/03[05]) - INTEGRATED FRONT HPL WITH PTO - PIPES - C6519 (VAR.330847-331847-332847-333847-334847-335847) (07) - HYDRAULIC SYSTEM

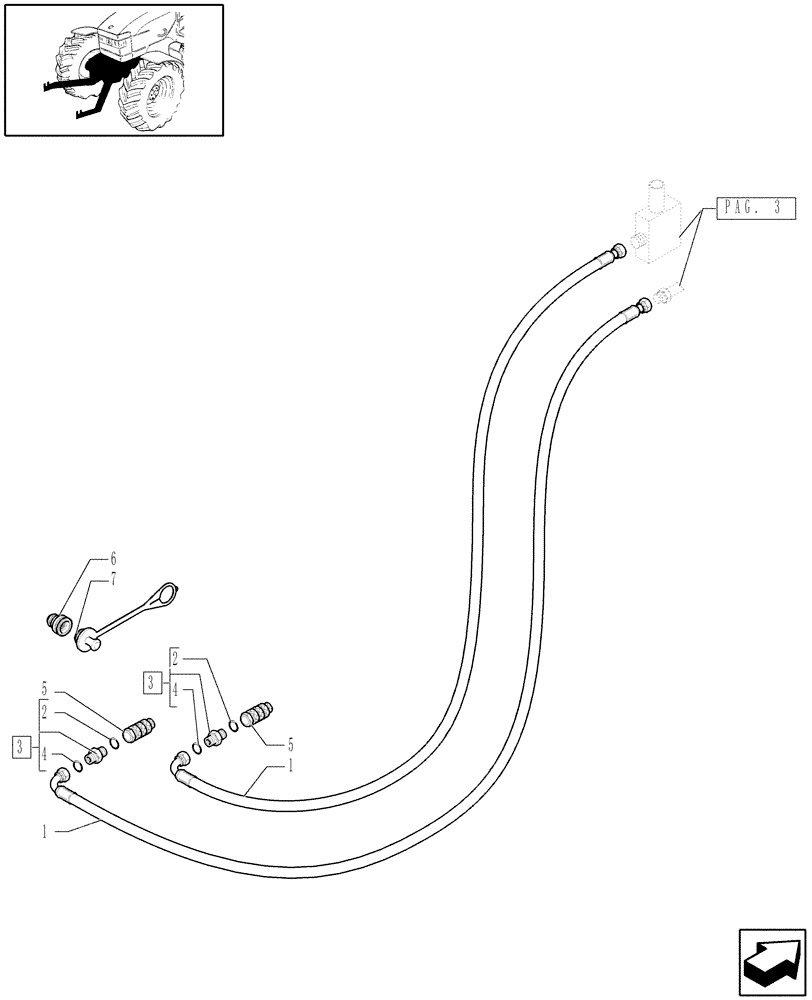

Схема запчастей Case IH MAXXUM 100 - (1.81.9/03[05]) - INTEGRATED FRONT HPL WITH PTO - PIPES - C6519 (VAR.330847-331847-332847-333847-334847-335847) (07) - HYDRAULIC SYSTEM
5
3
2
7
4
3
5
2
1
1
pag. 3
6
4

Артикул

Название

Примечание

Количество

1

47057676

FLEXIBLE HOSE,Hyd, 12mm ID x 2860mm L

1"-14, 13/16"-16, 2860MM

2шт.

MAX100, MAX110, MAX120, MAX130

1шт.

1

47057675

FLEXIBLE HOSE,Hyd, 12mm ID x 3100mm L

1"-14, 13/16"-16, 3100MM

2шт.

MAX115, MAX125, MAX140

1шт.

2

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

, Serial Range: -C5857

2шт.

3

5185524

HYD CONNECTOR

1"-14, 1/2"-14, Incl. 2, 4, Serial Range: -C5857

2шт.

3

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

Incl. 4, Start Serial: D5857

2шт.

4

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

, Serial Range: -C5857

2шт.

4

83416185

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

, Start Serial: D5857

2шт.

5

83972881

COUPLING

2шт.

6

47127559

COUPLING, QUICK, FEM

Green

2шт.

7

5179576

PLUG,24mm, Green

2шт.

Выбрано товаров: 12
