Запчасти Case IH MAXXUM 100 (1.81.9/03[03]) - INTEGRATED FRONT HPL WITH PTO - PIPES AND ACCUMULATOR - C6519 (VAR.330847-331847-332847-333847-334847-335847) (07) - HYDRAULIC SYSTEM

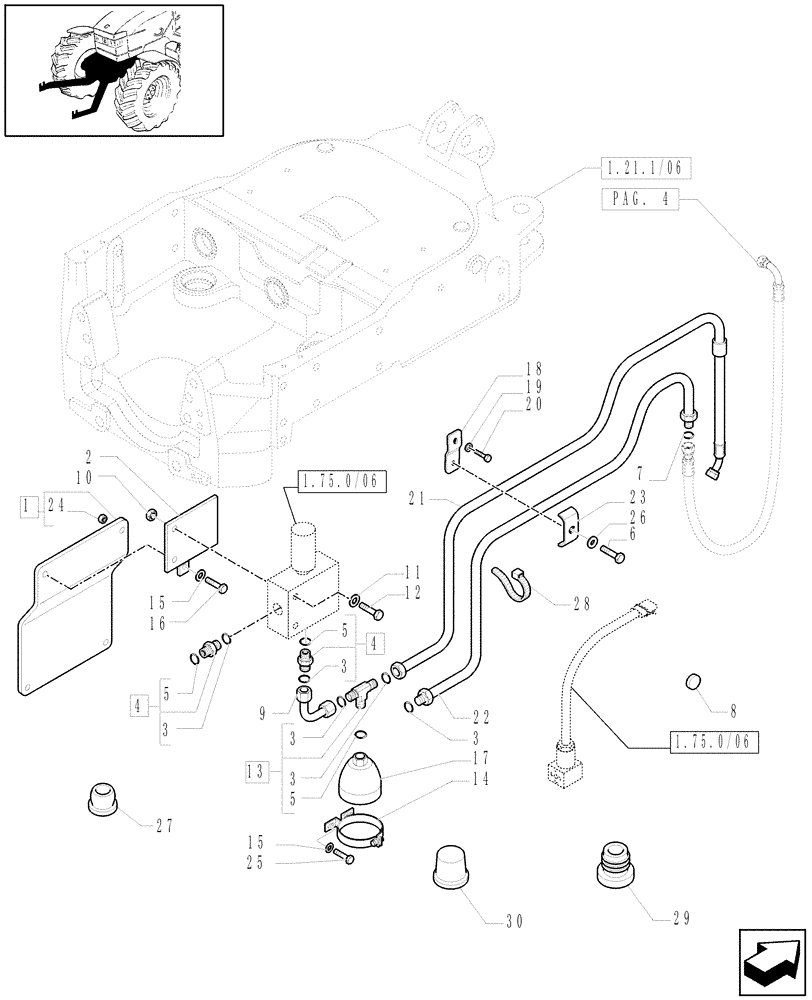

Схема запчастей Case IH MAXXUM 100 - (1.81.9/03[03]) - INTEGRATED FRONT HPL WITH PTO - PIPES AND ACCUMULATOR - C6519 (VAR.330847-331847-332847-333847-334847-335847) (07) - HYDRAULIC SYSTEM
15
29
4
30
5
3
10
25
3
16
14
2
24
28
17
1
6
21
18
pag. 4
5
22
20
12
3
23
13
3
27
5
8
26
9
11
7
4
3
19
1.21.1/06
1.75.0/06
1.75.0/06
15

Артикул

Название

Примечание

Количество

1

47057232

SUPPORT

1шт.

2

47057439

SUPPORT

1шт.

W/VAR.330847-331847 only

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

5шт.

4

5185524

HYD CONNECTOR

1"-14, 1/2"-14

2шт.

W/VAR.330847-331847 only

1шт.

5

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

6

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

M12.42 ID x 1.78 Thk

1шт.

8

82037171

PLASTIC PLUG,22.00mm, 32.00mm OD

4шт.

9

5141295

SOLENOID VALVE

1"-14

1шт.

W/VAR.330847-331847 only

1шт.

10

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

W/VAR.330847-331847 only

1шт.

11

14499304

WASHER,6.4mm ID x 11mm OD x 1.6mm Thk

2шт.

W/VAR.330847-331847 only

1шт.

12

10903724

BOLT,M6 x 55, 8.8

2шт.

W/VAR.330847-331847 only

1шт.

13

47057674

TEE

1"-14, 1/2"

1шт.

14

47057603

CLAMP,119mm - 127mm

1шт.

15

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

16

16043531

SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd

4шт.

17

47057602

ACCUMULATOR,0.75L

1шт.

18

87603020

CLAMP,21mm HD, 110mm L

1шт.

19

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

20

11121321

BOLT,Hex, M20 x 2.5 x 35mm, Cl 8.8, Full Thd

M20 x 2.5 x 35

1шт.

21

87603039

HYD TUBE,345 mm L

1"-14, 13/16"-16

1шт.

22

87603038

HYD TUBE,16 mm OD x 784.91 mm L

1"-14, 13/16"-16, Includes 3, 7

1шт.

23

47057074

CLAMP,48.6mm x 30mm

2шт.

24

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

25

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

26

10516674

LOCK WASHER,M8

2шт.

27

87523187

PLUG,M12 x 1.5

M12 x 1.5

2шт.

28

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

CABLE STRAP

4шт.

29

83908579

PLUG,M7.62

2шт.

30

85700666

PLASTIC PLUG,17.14mm, 22.22mm OD, 12.70mm D

16шт.

Выбрано товаров: 36
