Запчасти Case IH MAXXUM 100 (1.80.7/02[02A]) - PTO CLUTCH LESS CREEPER (24X24 / 16X16) (2WD) - CONTROL VALVE AND PARTS - D5806 - C5898 (VAR.330405-334405-335405-336405) (07) - HYDRAULIC SYSTEM

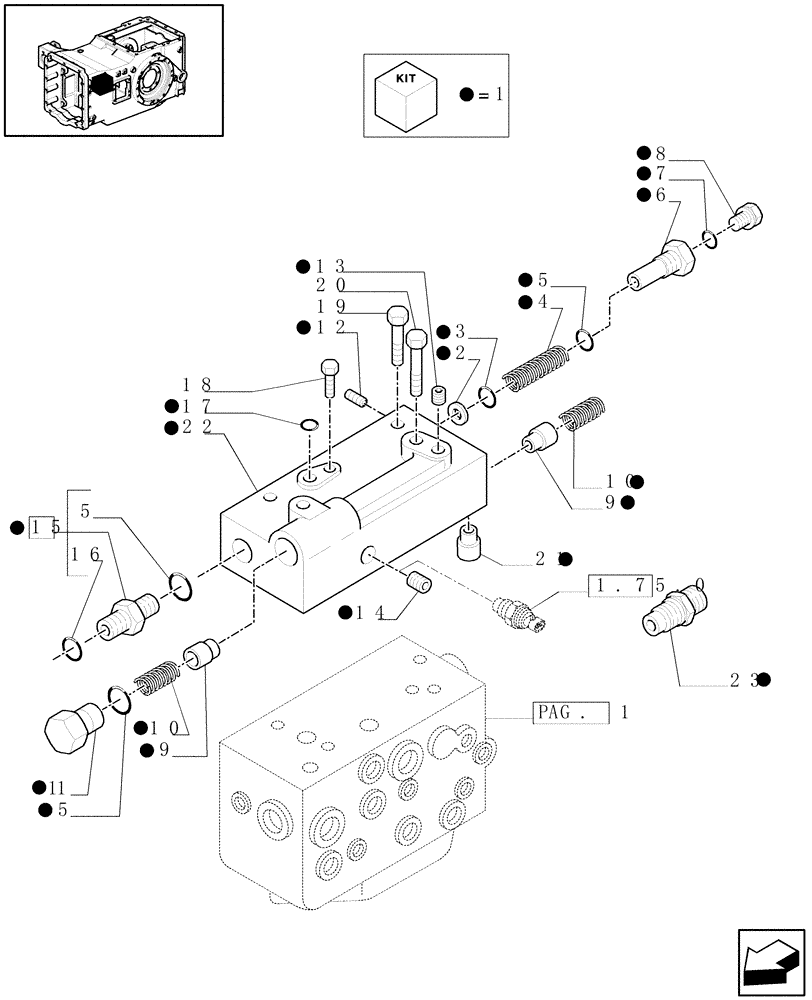

Схема запчастей Case IH MAXXUM 100 - (1.80.7/02[02A]) - PTO CLUTCH LESS CREEPER (24X24 / 16X16) (2WD) - CONTROL VALVE AND PARTS - D5806 - C5898 (VAR.330405-334405-335405-336405) (07) - HYDRAULIC SYSTEM
1.75.0
1
20
1
23
1
22
9
13
1
19
1
18
1
4
1
6
15
1
a
g. 1
1
1
2
8
1
1
1
1
1
1
1
1
1
1
21
16
5
1
14
10
1
9
3
17
1
p
5
1
1
10
5
12
7

Артикул

Название

Примечание

Количество

1

47123785

CONTROL VALVE

1шт.

2

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

3

13397776

SNAP RING,M16, Int

1шт.

4

5157119

SPRING,11.5mm x 127mm

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

3шт.

6

87692961

PLUG

1шт.

7

87316678

SEALING WASHER,10mm ID x 16mm OD x 2.3mm Thk

1шт.

8

87535222

PLUG,Hex, M10 x 1 x 13mm

1шт.

9

5169565

VALVE,By-Pass

2шт.

10

5159185

SPRING,Compression, 12.5mm OD x 32.5mm L

2шт.

11

47123781

PLUG,M22 x 1.5

1шт.

12

13806421

SET SCREW,Hex Soc, M6 x 8mm

1шт.

13

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

12.42 x 1.78

1шт.

14

83931497

PLUG,3/8-18 x 0.42

1шт.

15

5192291

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

M22 x 1.5, 1"-14

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

18

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

19

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

20

16044521

SCREW,Hex, M8 x 65mm, Cl 8.8

2шт.

21

47137823

HYD CONNECTOR

1шт.

22

87695626

MANIFOLD VALVE

Incl.12, 13, 24

1шт.

23

87692954

HYD CONNECTOR

Max Pressure

1шт.

Выбрано товаров: 23
