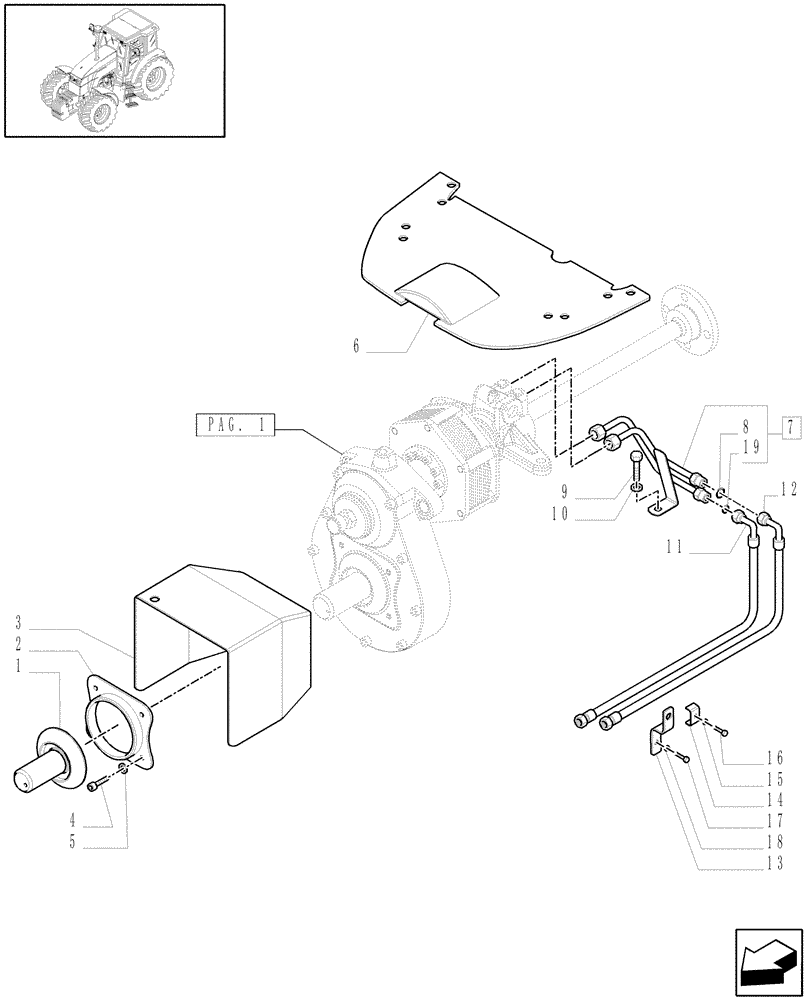

Запчасти Case IH MAXXUM 100 (1.80.5[02]) - NOT INTEGRATED FRONT HPL WITH 6 SPLINES PTO - GUARDS AND PIPES - C6335 (VAR.330813) (07) - HYDRAULIC SYSTEM

1

5171520

SHIELD,132mm L

1шт.

2

5155332

SEAL PROTECTION,115mm ID x 122mm OD x 29mm Thk

1шт.

3

5174047

SHIELD

1шт.

4

14359224

HEX SOC SCREW,M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

12601374

WAVE WASHER,Wave, 8.40mm ID x 15.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

6

87530617

PROTECTION PLATE

1шт.

7

87541731

HOSE

1шт.

8

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

(M9.25 x 1.78)

1шт.

9

11106021

BOLT,Hex, M10 x 1.5 x 20 mm, Cl 8.8, Full Thd

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

11

87541731

HOSE

2760MM, 9/16-18, 13/16-16

1шт.

Front Brake Feed

1шт.

12

87541732

HOSE

2760MM, 11/16-16, 11/16-16

1шт.

Front Brake Return

1шт.

13

82034365

BRACKET

1шт.

14

82034363

CLAMP

1шт.

15

14496404

WASHER,M6 x 12 x 2 Thk

1шт.

16

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

1шт.

17

10979224

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

18

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

19

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1.78x7.66

1шт.
