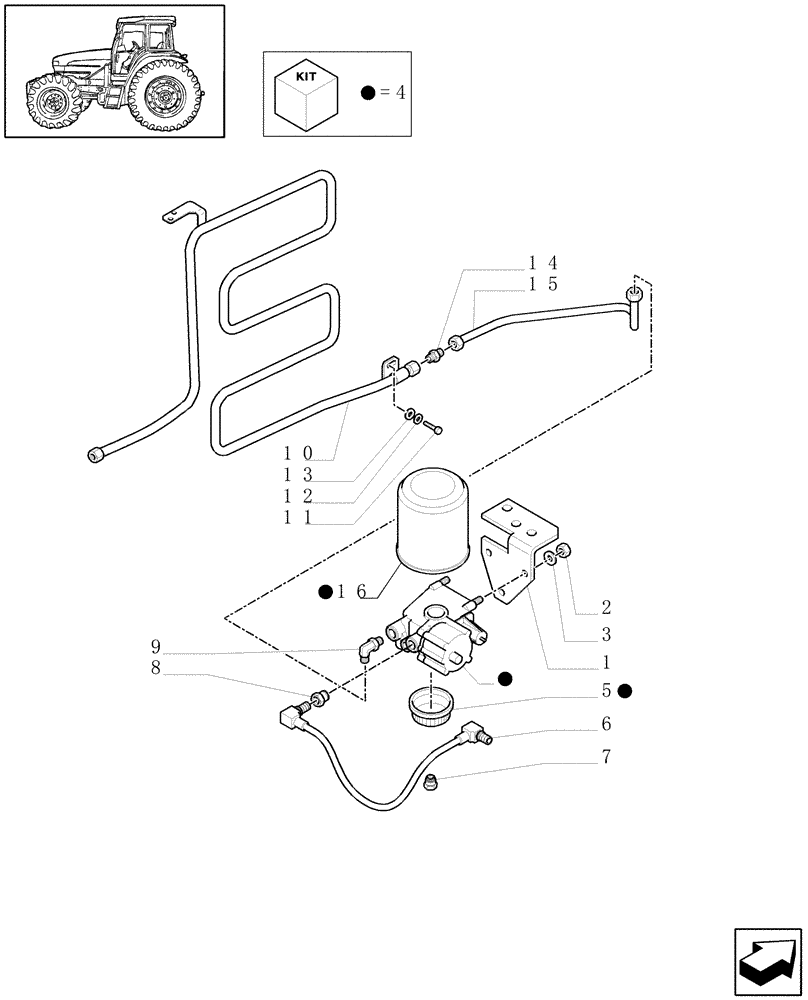

Запчасти Case IH MAXXUM 100 (1.68.6[05]) - TRAILER AIR BRAKE - AIR DRYER AND PIPES (VAR.332727-333727-332737-339737-332739-333739) (05) - REAR AXLE

1

87326690

BRACKET

1шт.

2

11702911

NUT,M12, Cl 8, ZND

3шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

3шт.

4

87365850

RECEIVER-DRYER,Air Conditioner

1шт.

5

82033657

VALVE

, Serial Range: -C5514

1шт.

6

87573866

TUBE,16mm OD x 930mm L

16 x 2 x 930MM

1шт.

7

87342450

PLUG

1шт.

8

82034157

ADAPTER

1шт.

9

82003206

ELBOW,90 Deg, 7/8-14 x M22 x 1.5 ORB

1шт.

10

87399985

BRAKE LINE,918, 30 mm L

7/8-14

1шт.

11

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

12

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

1шт.

13

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

14

82024503

HYD CONNECTOR,7/8"-14 x 7/8"-14

7/8-14

1шт.

15

87359508

BRAKE LINE,13 mm ID x 16 mm OD

7/8-14

1шт.

16

87638772

CARTRIDGE,165mm L

1шт.
