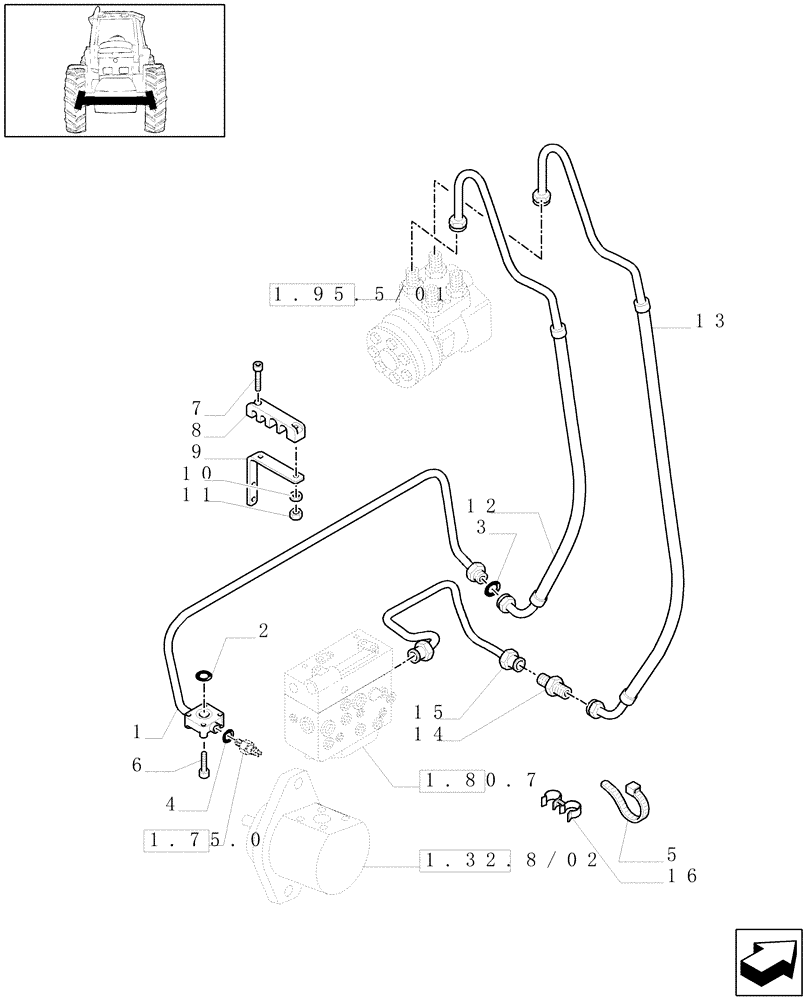

Запчасти Case IH MAXXUM 100 (1.42.0/07[01]) - 113 L/MIN CCLS PUMP FOR (CL.3) FRONT AXLE - POWER STEERING PIPES - C6562 (VAR.330835-331836-332836-333836-335836 / 743744) (04) - FRONT AXLE & STEERING

1

47123588

HYD TUBE

INCL.2,3

1шт.

2

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

3

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

5

82001040

CABLE TIE,.19" x 11.5"

CABLE STRAP

2шт.

6

14305624

HEX SOC SCREW,M6 x 35mm, Cl 8.8

4шт.

7

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

8

47123528

CLAMP

1шт.

9

47124243

BRACKET

1шт.

10

14499407

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

2шт.

11

16100821

NUT,M8, Cl 10

2шт.

12

82036340

HYD TUBE

FEED, Std cab

1шт.

12

82036217

HYD TUBE

FEED, Suspended cab,

1шт.

13

82036341

HYD TUBE

RETURN, Std cab

1шт.

13

82036218

TUBE

RETURN, Suspended cab,

1шт.

14

82030315

HYD CONNECTOR

1-14UNF, 13/16 - 16UNF

1шт.

15

87367851

RIGID TUBE,16 mm DIA x 209, 136 mm L

1-14

1шт.

16

82035888

CLIP,16mm

1шт.
