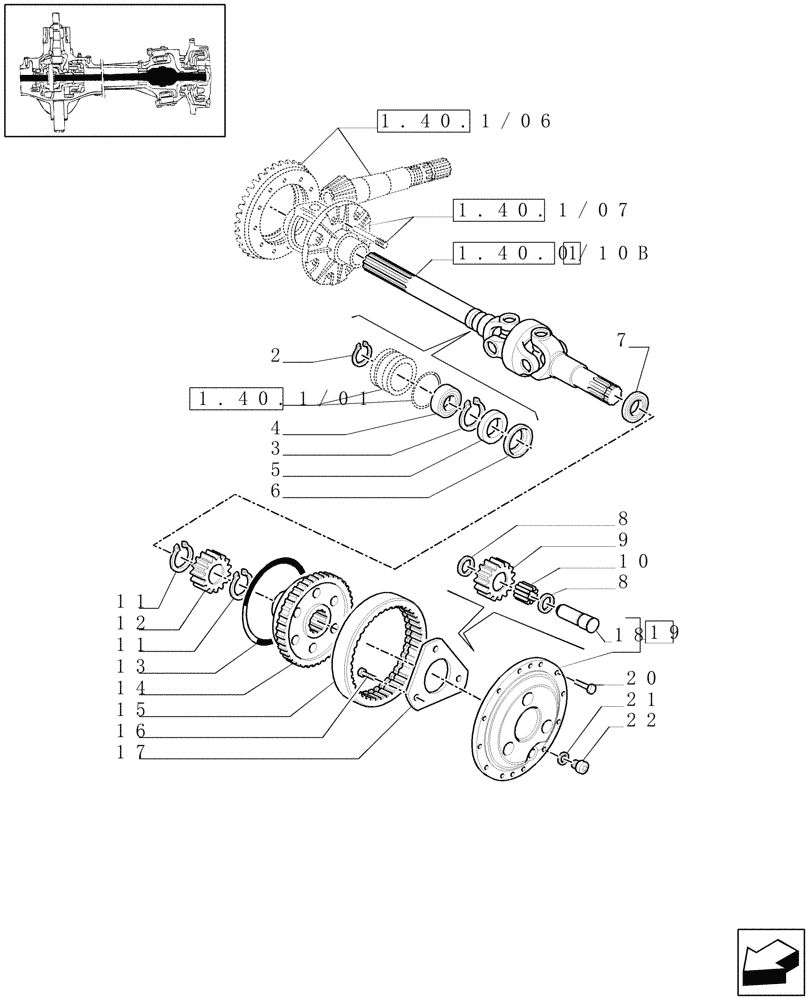

Запчасти Case IH MAXXUM 100 (1.40. 1/10[01A]) - 4WD (CL.3) FRONT AXLE WITH DOG CLUTCH - PROPELLER SHAFT AND EPICYCLIC GEAR TRAIN - D6449 (STANDARD) (04) - FRONT AXLE & STEERING

1

84194816

SHAFT

ASSY, RH

1шт.

1

84194809

SHAFT

ASSY, LH

1шт.

2

11068876

SNAP RING,M40, Ext

2шт.

3

11061376

SNAP RING,M68, Int

2шт.

4

28042480

BALL BEARING,40.00mm x 68.00mm x 15.00mm

40x68x15

2шт.

5

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

45x60x16

2шт.

6

5109311

SEAL PROTECTION,45.2mm ID x 68mm OD x 1mm Thk

2шт.

7

84166643

SEAL,45mm ID x 65mm OD x 27mm Thk

2шт.

8

5145499

THRUST WASHER,30mm ID x 50mm OD x 0.8mm Thk

12шт.

9

5145497

PLANETARY GEAR,25T

6шт.

10

5145492

ROLLER BEARING,30.3mm ID x 40.3mm OD x 29.8mm W

6шт.

11

5140018

SNAP RING,M30, Ext

D=30

4шт.

12

5145501

SUN GEAR,16T

2шт.

13

5151438

LOCKING RING,222mm ID, Int

2шт.

14

84224948

NOTCHED DISK

2шт.

15

5191770

RING GEAR

2шт.

16

14274434

LOCK BOLT,Hex, M12 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

17

5152324

LOCKING RING,4mm Thk

2шт.

18

87304540

PIN,30.3mm OD x 68mm L

68mm l.

6шт.

19

87310820

CARRIER,Planetary

2шт.

20

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

24шт.

21

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

22

14326211

PLUG,M22 x 1.50, R50, ZND

2шт.
