Запчасти Case IH MAXXUM 100 (1.40. 1/05) - 4WD (CL.3) FRONT AXLE WITH DOG CLUTCH - SUPPORT (STANDARD) (04) - FRONT AXLE & STEERING

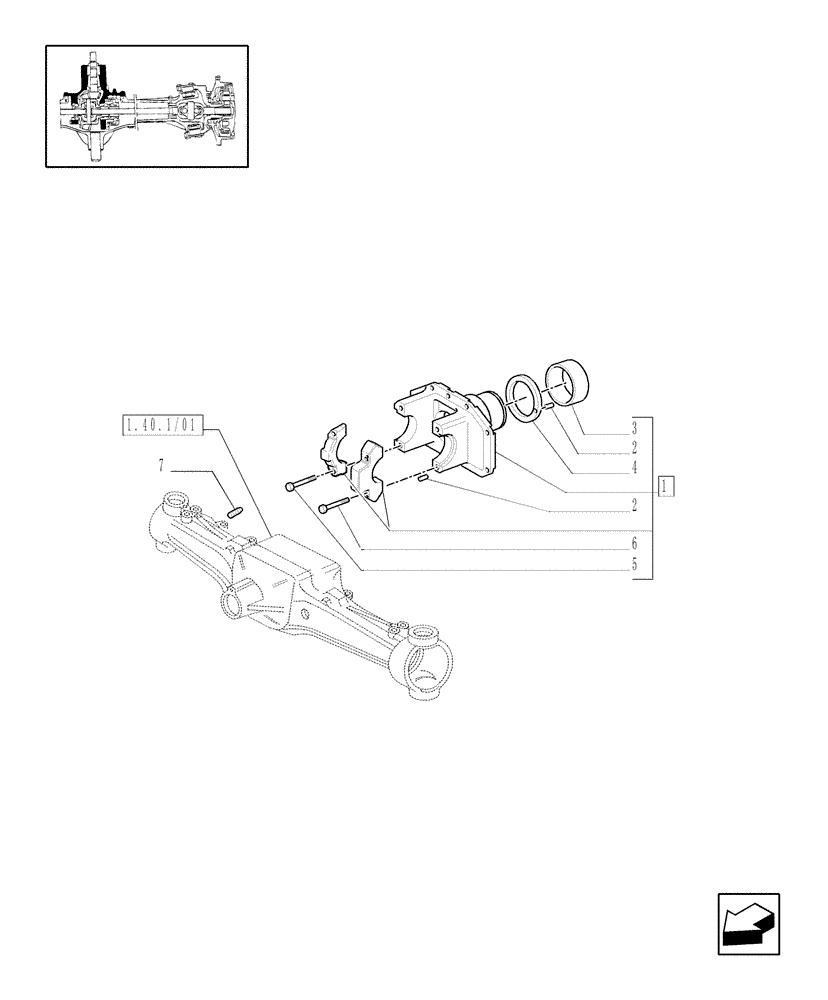

Схема запчастей Case IH MAXXUM 100 - (1.40. 1/05) - 4WD (CL.3) FRONT AXLE WITH DOG CLUTCH - SUPPORT (STANDARD) (04) - FRONT AXLE & STEERING
6
2
3
2
1
1.40.1/01
7
5
4

Артикул

Название

Примечание

Количество

1

87523108

SUPPORT

ASSY

1шт.

2

4966244

PIN,5mm OD x 15mm L

M5 x 15

5шт.

3

5136120

BUSHING,90mm ID x 99.05mm OD x 72mm L

90 x 99 x 72

1шт.

4

5136119

RING,90.3mm ID x 136mm OD x 5mm Thk

90 x 136 x 5

1шт.

5

14275331

LOCK BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9

2шт.

6

14276934

BOLT,Hex, M12 x 1.25 x 78mm, Cl 10.9

M12 x 1.25 x 78

2шт.

7

13798231

SET SCREW,Hex Skt, M6 x 25mm, Cl 10.9, Full Thd, Cone Pt

2шт.

Выбрано товаров: 7
