(1.40.10/06[02]) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - ADJUSTING SHIMS (VAR.330416)

Запчасти Case IH MAXXUM 100 (1.40.10/06[02]) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - ADJUSTING SHIMS (VAR.330416) (04) - FRONT AXLE & STEERING

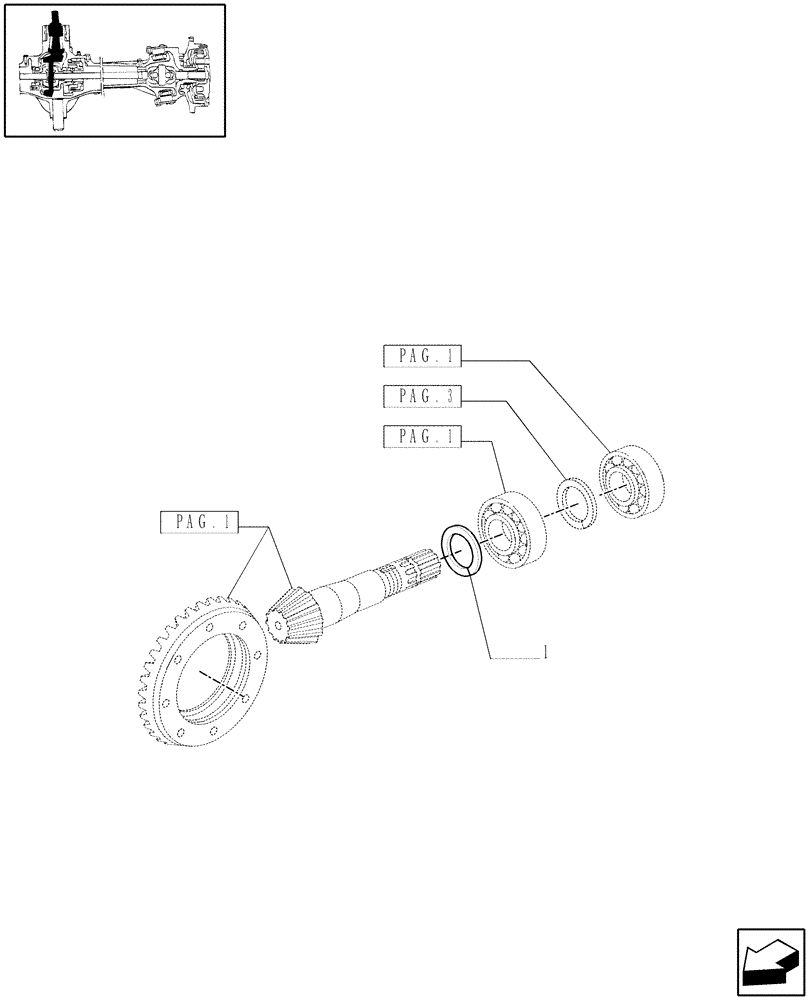

Схема запчастей Case IH MAXXUM 100 - (1.40.10/06[02]) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - ADJUSTING SHIMS (VAR.330416) (04) - FRONT AXLE & STEERING
a
g
g
g
p
1
1
p
a
p
3
.
.
.
p
1
g
a
a
1
.
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5142027

SHIM,41.4mm ID x 58mm OD x 2.5mm Thk

1шт.

1

5142028

SHIM,41.4mm ID x 58mm OD x 2.6mm Thk

1шт.

1

5142029

SHIM,41.4mm ID x 58mm OD x 2.7mm Thk

1шт.

1

5142030

SHIM,41.4mm ID x 58mm OD x 2.8mm Thk

1шт.

1

5142031

SHIM,41.4mm ID x 58mm OD x 2.9mm Thk

1шт.

1

5142032

SHIM,41.4mm ID x 58mm OD x 3mm Thk

1шт.

1

5142033

SHIM,41.4mm ID x 58mm OD x 3.1mm Thk

1шт.

1

5142034

SHIM,41.4mm ID x 58mm OD x 3.2mm Thk

1шт.

1

5142035

SHIM,41.4mm ID x 58mm OD x 3.3mm Thk

1шт.

1

5142036

SHIM,41.4mm ID x 58mm OD x 3.4mm Thk

1шт.

1

5142037

SHIM,41.4mm ID x 58mm OD x 3.5mm Thk

1шт.

1

5142038

SHIM,41.4mm ID x 58mm OD x 3.6mm Thk

1шт.

1

5142039

SHIM,41.4mm ID x 58mm OD x 3.7mm Thk

1шт.
