Запчасти Case IH MAXXUM 100 (1.40.10/04) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - LINK (VAR.330416) (04) - FRONT AXLE & STEERING

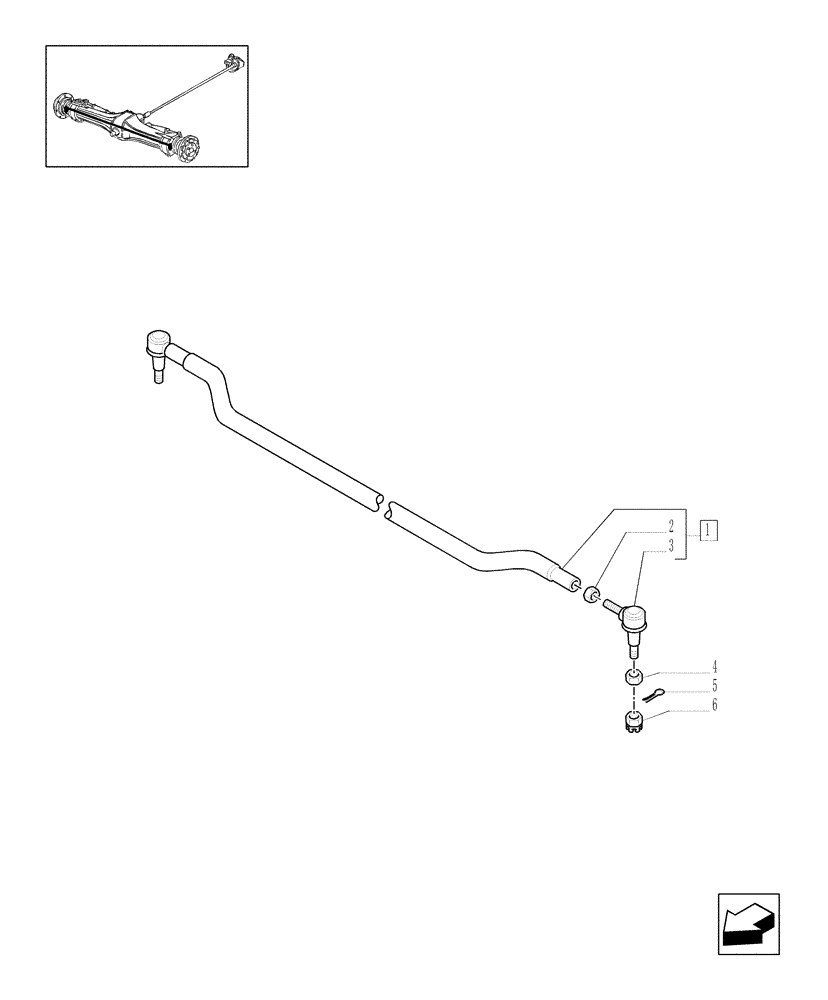

Схема запчастей Case IH MAXXUM 100 - (1.40.10/04) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - LINK (VAR.330416) (04) - FRONT AXLE & STEERING
3
5
6
1
4
2

Артикул

Название

Примечание

Количество

1

5197798

TRACK ROD ASSY,M24 x 1.5mm ID x 1597mm L

1шт.

2

10726911

THIN NUT,Thin, M24 x 1.5 x 10.00mm High, ZND

1шт.

3

87542553

BALL JOINT

1шт.

4

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

2шт.

5

10733804

COTTER PIN,4.00mm Dia x 16.00mm

2шт.

6

10724614

SLOTTED NUT,Thin Slotted, M18, 1.5mm Pitch, 15.00mm High, R80, DAC

M18x1.5

2шт.

Выбрано товаров: 6
