(1.40.10/01) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - BOX (VAR.330416)

Запчасти Case IH MAXXUM 100 (1.40.10/01) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - BOX (VAR.330416) (04) - FRONT AXLE & STEERING

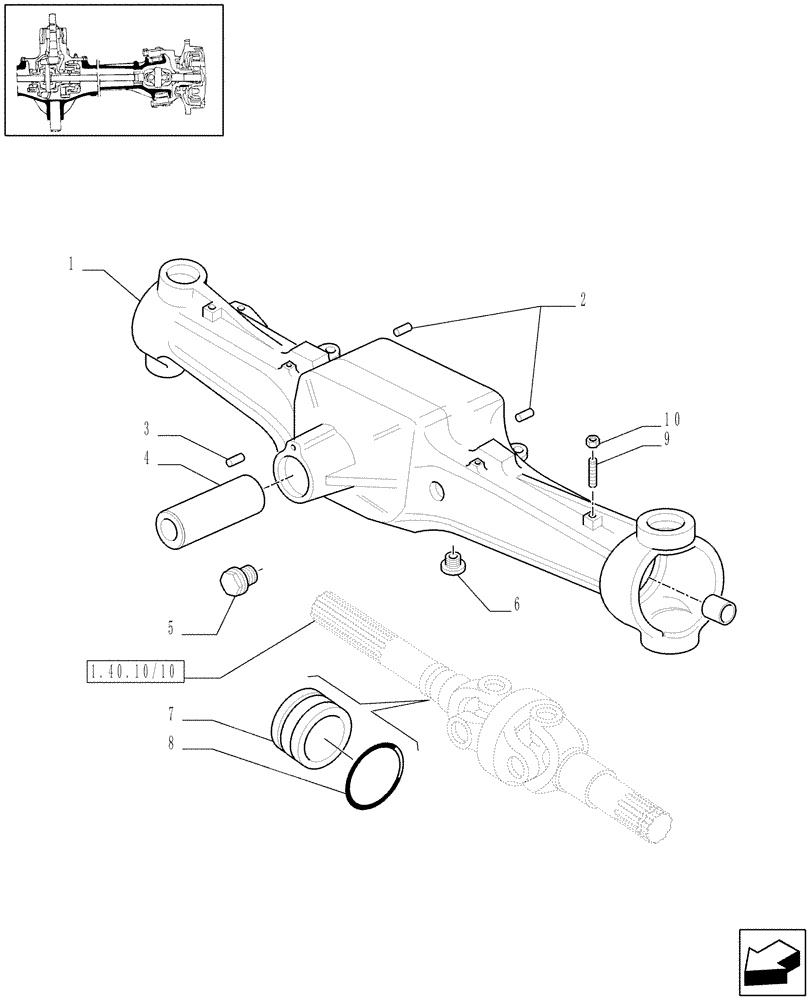

Схема запчастей Case IH MAXXUM 100 - (1.40.10/01) - (CL.3) FRONT AXLE WITH DOG CLUTCH LESS STEERING SENSOR - BOX (VAR.330416) (04) - FRONT AXLE & STEERING
1
7
1.40.10/10
4
3
5
2
10
6
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87585991

AXLE HOUSING

Incl. 2-4

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

M5 x 15

1шт.

4

5140017

PIN,52.65mm OD x 153.00mm

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

M22x1.5

2шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

1шт.

7

87371254

BUSHING,68mm ID x 85mm OD x 45mm L

, Serial Range: -C6449

2шт.

7

84197406

BUSHING

, Start Serial: D6449

2шт.

8

87421144

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

2шт.

9

87316865

SET SCREW,M12 x 1.25 x 53mm

2шт.

10

16101524

NUT,M12 x 1.25, Cl 10

2шт.
